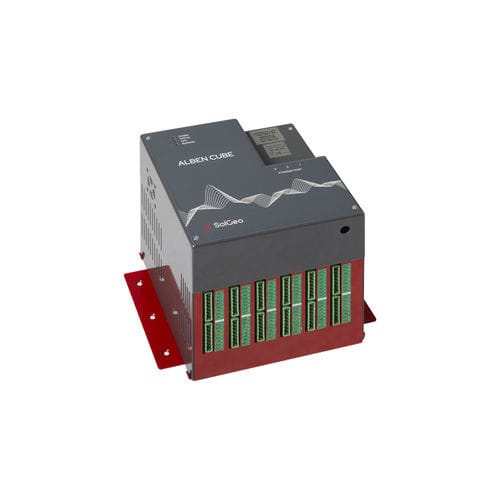

Speed data acquisition system DYMAS 24 ALBEN CUBE

voltagevibrationseismic

Alben Cube is a multichannel digital acquisition system (up to 36 channels) specifically designed for fixed installations for long-term monitoring of seismic events on civil, industrial and monumental works. MULTICHANNEL RECORDER - Available in configuration of 12, 18, 24, 30, 36 channels; possibility to increase the number of channels by connecting more acquirers in a network. - Standard guidelines UNI 4150-3, DIN45669-1, UNI 9916, EN61000 61326-1 - 24-bit multichannel sampling - Sampling frequency: 10Hz – 1kHz - Bandwidth: DC - 400 Hz - Ring buffered continuous recording, scheduled and/or event-driven recording - Network Trigger - Integrated sensor test function - Internal SD memory: 32GB each 6 channels (expandable to 64GB) - Seismometers and/or accelerometers connection APPLICATIONS • Civil and industrial long-term monitoring, dynamic monitoring of viaducts and implants DETAILS This digital acquirer allows you to acquire up to 36 channels in multiples of 6, placed in a single cabinet with wall or floor mounting. The communication system via LAN cable allows to cover distances up to 300m; alternatively, the connection to the system from remote can be made via 4G modem, fiber optic, WiFi and more on request. The configuration is done through a simple WEB interface without the need for dedicated applications. VIBROSOFT or SOLWEB data processing software, enables efficient dynamic monitoring networks. Dimention: 205x205x205 mm Weight: 5,7 kg
