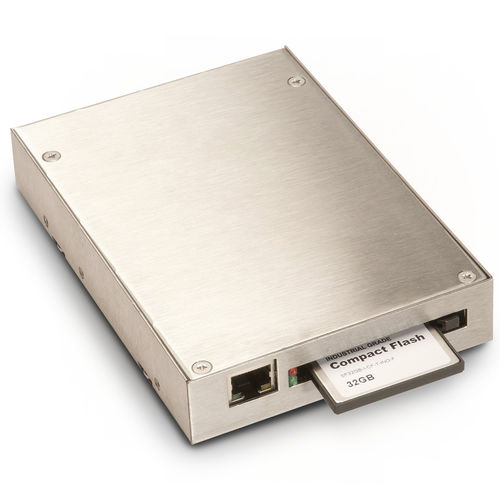

SCSI magneto-optic drive emulator CF2SCSI / SCSIFLASH-MO

3.5"Compact FlashHitachi

The Hitachi SCSI Emulator allows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus. It will be It will be seen as a Hitachi Magneto Optic Drive by the host computer. The SCSI MO Bridge can emulate many other Hitachi Magneto Optic drives and can be programmed to suit the host systems requirements.Small format PCB converts Compact Flash Media to appear as a Hitachi Magneto Optic Emulator on a Host’s SCSI bus3.5” form factor PCB which will replace any 3.5” or 5 ¼” Hitachi Magneto Optic EmulatorWill fit in a 3.5” disk slot using the same mountingsSCSI Host will typically see the device as a Hitachi Magneto Optic Emulator of any emulationBoard is low power, using 5V only, and has an optional add-on display and pushbutton user interfaceMicrocode is field upgradable via integral serial portOptional integration support available if required FLASH2GUI - Optional ethernet support for centralised backup & restore capability available removing the need to rotate media. Primary data storage is always written to the CF card. No software change to the host required.
