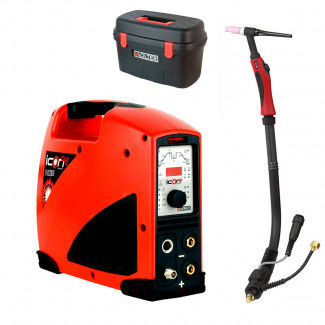

TIG welder K0220 ICONTIG 1990 HF PULSE single-phasepulsed DCportable
Add to favorites
Compare this product
Characteristics
- Technique
- TIG
- Power supply
- single-phase
- Output current
- pulsed DC
- Other characteristics
- portable
- Intensity
180 A
- Output frequency
500 Hz
Description
Duty cycle at 40ºC: 45%
Intensity at 60%(100%) 40ºC: 140A (100A)
Regulation: 10 - 180A
Usable electrodes: 1,6mm - 4,0mm
Connection: 230V-1ph
Usable range: 10-180A (10,4 - 17,2V)
OCV: 80V
Max. absorbed power: 6,5KVA
Fuse: 16A
Ventilation: Doble / Double AUTO
Weight: 4,9 kg
Regulation panel: iCONTIG “pulse”
Norms: EN 60974-1, EN 60974-10
Protection Index: IP23C
Tig usable electrodes: 1,6mm - 2,4mm
Dimensions: 320x135x285 mm
Pulse freq.: 500Hz
