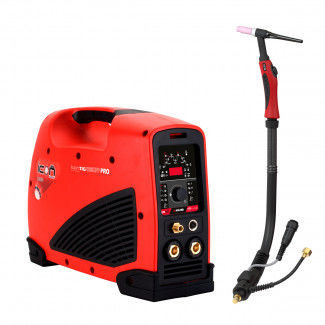

TIG welder ICONTIG 2220 HFP WIsingle-phasepulsed DCportable
Add to favorites
Compare this product
Characteristics
- Technique
- TIG
- Power supply
- single-phase
- Output current
- pulsed DC
- Other characteristics
- portable
- Intensity
220 A
- Output frequency
2,000 Hz
Description
Duty cycle at 40ºC: 80%
Intensity at 60%(100%) 40ºC: 220A(80%) - (160A)
Regulation: 10-220A
Usable electrodes: 1,6mm - 4,0mm
Connection: 230V-1ph
Usable range: 120V - 310V
OCV: 68V
Max. absorbed power: 8,5KVA
Fuse: 25A
Ventilation: Doble / Double AUTO
Weight: 7,2 Kg
Regulation panel: iCONTIG “pulse”
Norms: EN 60974-1, EN 60974-10
Protection Index: IP23C
Tig usable electrodes: 1,6mm - 4,0mm
Dimensions: 430x175x325 mm
Pulse freq.: 2000Hz
