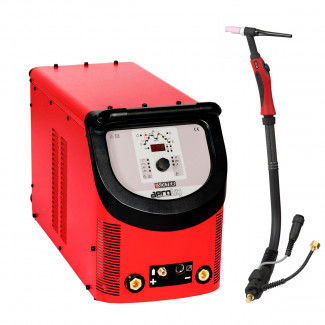

TIG welder AEROTIG 3320 HF PULSEthree-phasepulsed DCportable
Add to favorites
Compare this product
Characteristics
- Technique
- TIG
- Power supply
- three-phase
- Output current
- pulsed DC
- Other characteristics
- portable
- Intensity
320 A
- Output frequency
500 Hz
Description
Duty cycle at 40ºC: 45%
Intensity at 60%(100%) 40ºC: 280A (250A)
Regulation: 10 - 320A (10,4 - 20,8V)
Usable electrodes: 1,6 - 5,0mm
Connection: 3ph-400V
Usable range: 360-440V
Max. absorbed power: 15,3Kva
Fuse: 16A
Ventilation: DOUBLE auto TUNNEL
Weight: 70Kg
Regulation panel: AEROTIG
Norms: EN 60974-1, EN 60974-10
Protection Index: IP23
Tig usable electrodes: 1,6 - 4,0mm
Dimensions: 1020x800x390mm
Pulse freq.: 500Hz
