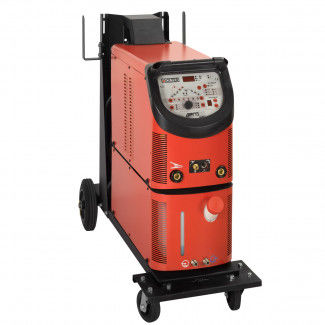

TIG welder AEROTIG 4330 HF PULSEthree-phaseACpulsed DC
Add to favorites
Compare this product
Characteristics
- Technique
- TIG
- Power supply
- three-phase
- Output current
- AC, pulsed DC
- Material
- for steel
- Other characteristics
- mobile
- Intensity
350 A
- Output frequency
3,000 Hz
Description
Duty cycle at 40ºC: 40%
Intensity at 60%(100%) 40ºC: 270A (220A)
Regulation: 10 - 350A (10,4 - 24V)
Usable electrodes: 1,6mm - 5,0mm
Connection: 3ph-400V
Usable range: 360-440V
OCV: 72V/12V (VRD)
Max. absorbed power: 20KVA
Fuse: 20A
Ventilation: DOBLE auto TUNNEL
Weight: 75Kg.
Regulation panel: AEROTIG "AC/DC PULSE"
Norms: EN60974-1, EN60974-10
Protection Index: IP23
Tig usable electrodes: 1,6mm - 4,0mm
Dimensions: 1020x800x390mm
Pulse freq.: 3.000Hz
