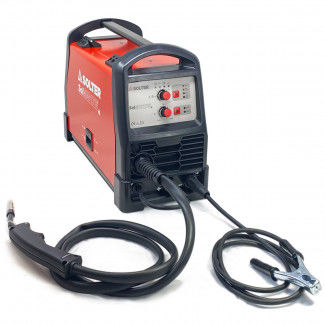

MIG-MAG welder SOLMIG 170I

inverter

· Synergic Multiprocess MIG/MMA. · Gas and gasless up to 0,8mm. · Connection 230V-1ph. · Supports D200 ( 5kg ). · Includes earth clamp and MIG torch. The SOLMIG-170 wire machine is a multiprocess equipment (MIG / MAG and Electrode) with Inverter technology, ideal for light jobs, designed to be easy and intuitive to use. Their single-phase connection, as well as the possibility of using wire without external gas thanks to the polarity reversal, give them enormous flexibility. Both wire speed / power and arc height can be adjusted, allowing all types of thicknesses to be welded with very good results. Duty cycle at 40ºC: 35% Intensity at 60%(100%) 40ºC: 90A (77A) Regulation: 20-150A Usable electrodes: 1,6mm - 3,25mm Connection: 1ph- 230V OCV: 58V Max. absorbed power: 4Kva Fuse: 16A Ventilation: FORCE Weight: 7,7Kg Regulation panel: SOLMIG DIGITAL Norms: EN-60974-1, EN60974-10 Protection Index: IP 21S Dimensions: 367x153x290mm Wire feeder rolls: 2R Usable welding wire: 0,6 - 0,8mm Max. usable coil: D200 - 5Kg
