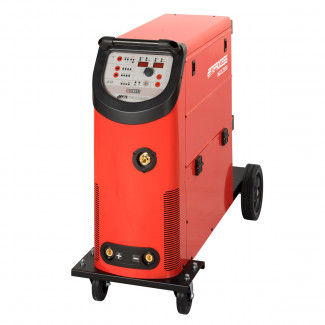

MIG-MAG welder AEROPROCESS 3200

three-phasemobile

· Professional welding machine MIG Synergic Multithreaded . · 320 amps at 45%. · Incredible results in all materials (Steel, Aluminum, Stainless, etc.). · Includes dough clamp. · Thread machine multifunction capable of welding using the MIG-MAG, TIG Lift-Arc and MMA processes. · Synergic control of the welding process with preselection of the work to be performed. · Arc height control to achieve a projection-free weld · Adjustable Crater-Filling , for a perfect weld bead finish. · Ideal for welding with GAP (separation between pieces) · Possibility of adjustment by wire speed (m / min.) and by current (Amp) b > · Real-time reading of voltage (Volt) and Intensity (Amp) during welding. When finished, the equipment shows the average of both parameters. · Control of the consumption of the used thread, allowing to calculate the cost of each process. · Possibility of storing up to 10 programs · Excellent results with pre-loaded programs in the welding of: Carbon Steel (SG3), Stainless (Ss-309, Ss-316), Aluminum (AL-5356, AL-4043), Copper-Silicon (CuSi3) and Tubular (Fc-Rutile , Fc-Basic, Fc-316) Duty cycle at 40ºC: 40% Intensity at 60%(100%) 40ºC: 280A (250A) Regulation: 20-320A(15 - 30V) Usable electrodes: 1,6mm - 4,0mm Connection: 400V - 3ph OCV: 65V Max. absorbed power: 15,3Kva Fuse: 16A Ventilation: TUNNEL AUTOMATIC Weight: 36kg Regulation panel: AEROPROCESS SYNERGIC Norms: EN 9071-1 , EN 60974-10 Protection Index: IP23 Tig usable electrodes: 1,6mm - 3,2mm Dimensions: 920x270x640mm Wire speed: 0.....18m/min Wire feeder rolls: 4R
