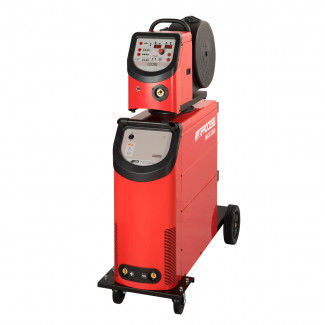

MIG-MAG welder AEROPROCESS 3220

three-phasefor steelmobile

· Professional Synergic Multiprocess MIG welding machine with separate wire feeder . · 320 amps at 45%. · Incredible results in all materials (Steel, Aluminum, Stainless, etc.). · Includes dough clamp. · Multifunction wire machine capable of welding using the MIG-MAG (with and without gas), TIG Lift-Arc and MMA processes. · Control synergistic of the welding process with preselection of the work to be done. · Arc height control to achieve a projection-free weld · Adjustable Crater-Filling , for a perfect weld bead finish. · Ideal for welding with GAP (separation between pieces) · Possibility of adjustment by wire speed (m / min.) and by current (Amp) b > · Real-time reading of voltage (Volt) and Current (Amp) during welding. When finished, the equipment shows the average of both parameters. Duty cycle at 40ºC: 40% Intensity at 60%(100%) 40ºC: 280A (250A) Regulation: 20-320A(15 - 30V) Usable electrodes: 1,6mm - 4,0mm Connection: 400V - 3ph OCV: 65V Max. absorbed power: 15,3Kva Fuse: 16A Ventilation: FORCED AUTOMATIC Weight: 65kg Regulation panel: AEROPROCESS SYNERGIC Norms: EN 90791-1, EN 60974-10 Protection Index: IP23 Tig usable electrodes: 1,6mm - 3,2mm Dimensions: 655x275x1290mm Wire speed: 0.....18m/min Wire feeder rolls: 4R Motor power: 65 W Usable welding wire: 0,6 - 1,2MM Max. usable coil: D300 - 15kg
