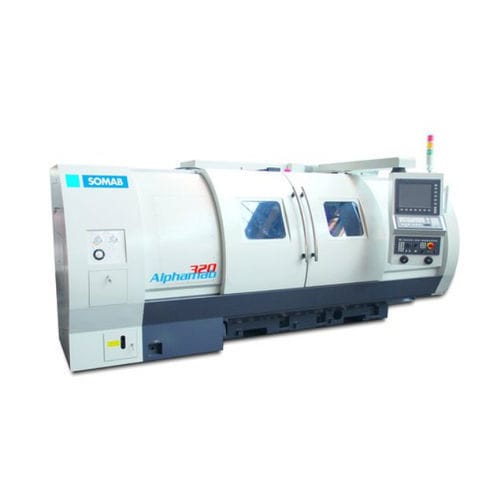

CNC lathe ALPHAMAB 320

horizontal2-axis3-axis

Ø305mm chuck with concentric jaws, delivered with: 1 set of 3 hardened jaws 1 set of 3 ground jaws Tailstock MK5 FOR 2 AXES MACHINE: Automatic rear turret 12 stations with rest plates 2 toolholders for frontal Roughing 25x25 square tool 1 Ø50mm boring tool holder (90mm wide) 4 Ø40mm boring tool holder (90mm wide) 1 set of reduction bushings from Ø40 to Ø8-10-12-16-20-25-32 2 intermediate sleeves Ø40 for MK3 and MK4 FOR 3 AXES MACHINE: Rotating tools and C axis Automatic turret with 12 stations VDI 40 Sliding and swiveling operator console Chip conveyor 3 bar coolant system Sliding front door and security lock for full protection Automatic volumetric greasing interior lighting Ventilated electrical cabinet Status light OPTIONS: Fix steady rest with 3 rollers for Ø50mm to 250mm, manual adjustment Fix steady rest with 3 rollers for Ø250mm to 400mm, manual adjustment Tool probe Isolation transformer FAGOR 8065 CNC with Learning SOMAB PL+S VT 15" color LCD flat touch screen QWERTY alphanumeric keyboard Two handwheels Rigid tapping (fixed tools and rotating tools) USB connections on front panel Connection to ETHERNET network with RJ 45, 3 operating modes conversationally Learning Mode Manual ISO mode 4 Gb Memory Tools Library Visualization of cutting forces - oscilloscope working with .dxf files or SIEMENS 828 D with Conversational SHOPTURN 10.4" TFT flat color screen Full QWERTY alphanumeric keyboard An electronic handwheel Rigid tapping USB connections on front panel Connection to ETHERNET network with RJ 45
