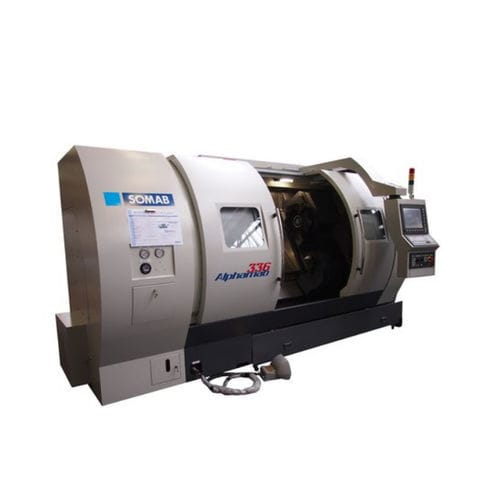

CNC lathe ALPHAMAB 336

horizontal2-axis3-axis

Ø380mm chuck with concentric jaws, delivered with: 1 set of 3 hardened jaws 1 set of 3 ground jaws Tailstock MK6 FOR 2 AXES MACHINE: Automatic rear turret 12 stations with rest plates 2 toolholders for frontal Roughing 32x32 square tool 4 Ø60mm boring tool holder (90mm long) 1 set of reduction bushings from Ø60 to Ø20-25-32-40-50 2 intermediate sleeves Ø60 for MK3, MK4 and MK5 FOR 3 AXES MACHINE: Rotating tools (only in VDI50 version) and C axis Automatic turret with 12 stations VDI 50 Sliding and swiveling operator console Chip conveyor 3 bar coolant system Sliding front door and security lock for full protection Automatic volumetric greasing interior lighting Air/air exchanger in electrical cabinet Status light OPTIONS: Fix steady rest with 3 rollers, manual adjustment for Ø50mm to 250mm or for Ø250mm to 400mm or for Ø400mm to 600mm Tool probe Isolation transformer FAGOR 8065 CNC with Learning SOMAB PL+S VT 15" color LCD flat touch screen QWERTY alphanumeric keyboard Two handwheels Rigid tapping (fixed tools and rotating tools) USB connections on front panel Connection to ETHERNET network with RJ 45, 3 operating modes conversationally Learning Mode Manual ISO mode 4 Gb Memory Tools Library Visualization of cutting forces - oscilloscope working with .dxf files or SIEMENS 828 D with Conversational SHOPTURN 10.4" TFT flat color screen Full QWERTY alphanumeric keyboard An electronic handwheel Rigid tapping USB connections on front panel Connection to ETHERNET network with RJ 45
