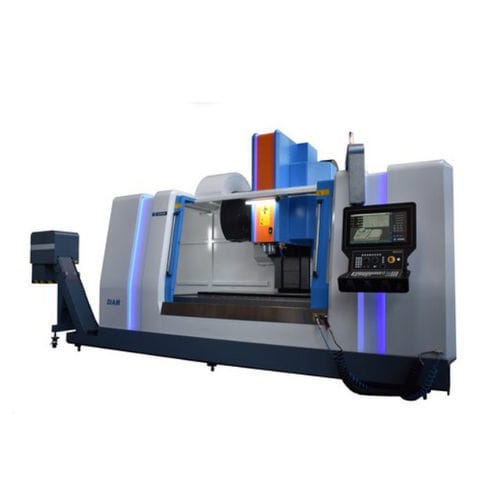

3-axis CNC milling machine DIAM 18905-axis4-axisvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Number of spindles
- 2-spindle
- Spindle mount
- BT 40, ISO 50, BT 50
- Number of tool stations
- 24 tools, 40 tools, 30 tools, 32 tools
- X travel
1,800 mm
(70.87 in)- Y travel
1,000 mm
(39.37 in)- Z travel
900 mm
(35.43 in)- Rotational speed
8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
15 kW, 18.5 kW, 26 kW
(20.39 hp, 25.15 hp, 35.35 hp)- Table load capacity
2,000 kg
(4,409 lb)- Weight
20,000 kg
(44,092.45 lb)- Overall length
4,900 mm
(192.9 in)- Overall width
3,520 mm
(138.6 in)- Overall height
3,660 mm
(144.1 in)
