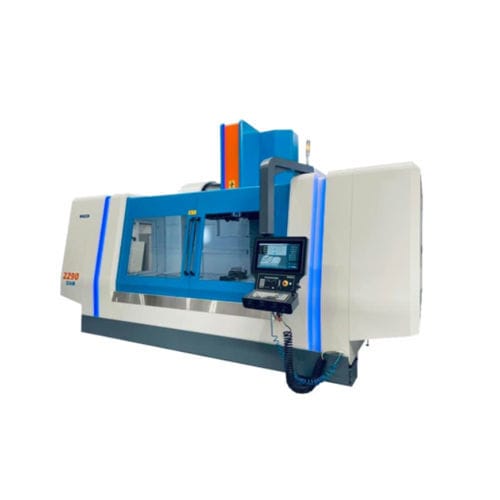

3-axis CNC milling machine DIAM 22905-axis4-axisvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Number of spindles
- 2-spindle
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools, 40 tools, 30 tools, 32 tools
- X travel
2,200 mm
(86.61 in)- Y travel
900 mm
(35.43 in)- Z travel
900 mm
(35.43 in)- Rotational speed
8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
15 kW, 18.5 kW, 22 kW, 26 kW
(20.39 hp, 25.15 hp, 29.91 hp, 35.35 hp)- Table load capacity
2,500 kg
(5,512 lb)- Weight
27,000 kg
(59,524.81 lb)- Overall length
6,000 mm
(236.2 in)- Overall width
3,720 mm
(146.5 in)- Overall height
3,920 mm
(154.3 in)
Description
Cooled spindle, drived by belt
4 bars coolant fluid
tool cooling through spindle or from flexi-jet nozzles
Air gun and water gun
chip conveyor, belt type
Full protection including sliding front door and safety lock.
4th axis preparation
interior lighting
OPTIONS:
part probe
tool probe
Precision scales on 3 linear axes
20 bars cooling through spindle
Motorized 4th axis with Ø170 or 200, 250, 320mm plate
smoke vacuum
Oil separator device
DELIVERABLE:
isolation transformer
toolholders
Fagor avec conversationel SOMAB PL+S VF
15" colour flat touch screen
full QWERTY alphanumerical keyboard and mouse
remove electronic hand wheel
USB connections and RJ45 for ETHERNET
Retrieving DXF files
SIEMENS 828 D with SHOPMILL conversational
10.4" TFT flat color screen
Full QWERTY alphanumeric keyboard
An electronic handwheel
USB connections on front panel
Connection to ETHERNET network with RJ 45
