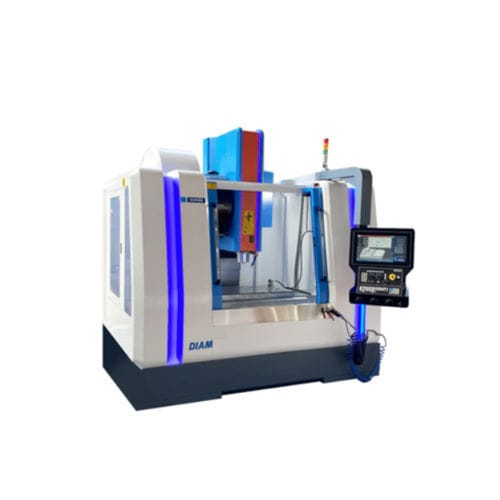

5-axis CNC milling machine DIAM 210verticalwith rotary tableHSK-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- with rotary table
- Spindle mount
- HSK-63
- Number of tool stations
- 24 tools, 40 tools, 30 tools, 20 tools, 32 tools
- X travel
610 mm
(24.02 in)- Y travel
450 mm
(17.72 in)- Z travel
380 mm
(14.96 in)- Rotational speed
10,000 rpm, 12,000 rpm, 15,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Table load capacity
75 kg
(165 lb)- Weight
7,400 kg
(16,314.21 lb)- Overall length
2,900 mm
(114.2 in)- Overall width
2,090 mm
(82.3 in)- Overall height
2,560 mm
(100.8 in)
