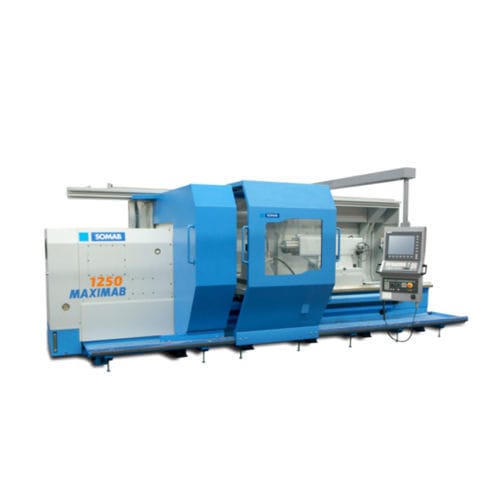

CNC turning machine MAXIMAB S1250

2-axis12 toolsprecision

Precision lathe with horizontal bed Hardened cast iron rectified slides. The axes are controlled by brushless motor and high precision screw balls (rack on Z axis for 6m stroke). Tool position (axis X and Z) is measured by precision scales. Asynchronous digital motor spindle control. 4-speed gearbox allows full power even at low speeds. Sliding and adjustable console Manual tailstock with motorized motion EQUIPMENT Ø1000 plate for 4 independent jaws with 4 hard jaws Multifix turret D2 type, comes with 3 turn off tool holder 40x40 square 1 socket holder Ø63mm Manual tailstock, motorized motion, with live center CM6 Central lubrication 4 speed gearbox with programmable automatic speed change, ranges: 5 to 40 rpm 41 to 80 rpm 81 to 160 rpm 161 to 630 rpm Chip conveyor with sprinkler Steady rest capacity 160-560 mm Integrated lighting device Sliding and swiveling operator console OPTIONS: Electrical turret 4 positions (vertical axis) type Baruffaldi ref: TAN 340, equipped with: 1 turn off tool holder 1 boring bar Ø80mm holder 1 reduction sleeve Ø80/60mm Manual chuck 500mm 3 concentric jaws comes with: 1 set of 3 hard jaws 1 set of 3 soft jaws Steady rest capacity 290-900 mm boring bar Ø120mm holder chip tray DELIVERABLE: Isolation Transformer toolholders antivibration boring bar
