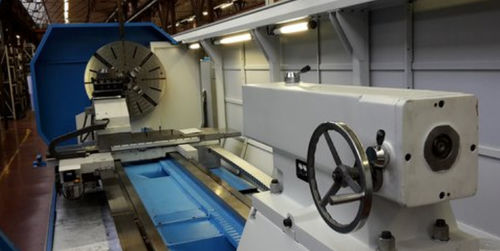

CNC turning machine MAXIMAB S1800

2-axis12 toolsprecision

Hardened cast iron rectified slides. The axes are controlled by brushless motor and high precision screw balls (rack on Z axis for 6m stroke). Tool position (axis X and Z) is measured by precision scales. Asynchronous digital motor spindle control. 4-speed gearbox allows full power even at low speeds. Sliding and adjustable console Manual tailstock with motorized motion EQUIPMENT Ø1400 plate for 4 independent jaws with 4 hard jaws, speed is limited to 260 rpm Multifix turret D2 type, comes with 3 turn off tool holder 40x40 square 1 socket holder Ø63mm Manual tailstock, motorized motion, with live center CM6 Central lubrication 4 speed gearbox with programmable automatic speed change Chip conveyor with sprinkler Steady rest capacity 220-630 mm Integrated lighting device Sliding and swiveling operator console OPTIONS: Electrical turret 4 positions (vertical axis) type Baruffaldi ref: TAN 340, equipped with: 1 turn off tool holder 1 boring bar Ø80mm holder 1 reduction sleeve Ø80/60mm Steady rest capacity 600-900 mm Steady rest capacity 600-1100 mm boring bar Ø120mm holder chip tray DELIVERABLE: Isolation Transformer toolholders antivibration boring bar FAGOR CNC with SOMAB PL + S VT interface 15" color LCD flat touch screen QWERTY alphanumeric keyboard Two handwheels Rigid tapping (fixed tools and rotating tools) USB connections on front panel Connection to ETHERNET network with RJ 45, 3 operating modes conversationally Learning Mode Manual ISO mode 4 Gb Memory Tools Library Visualization of cutting forces - oscilloscope working with .dxf files ALTERNATIVES: SIEMENS 840D sl with Conversational SHOPTURN 10.4" TFT flat color screen
