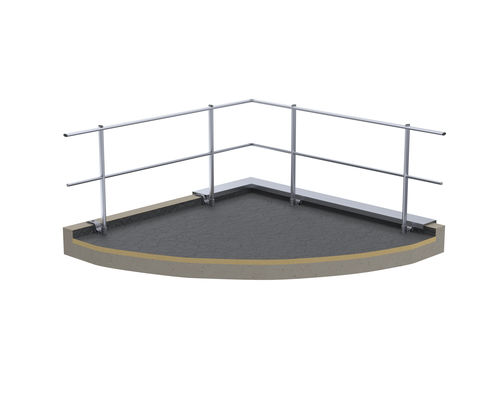

Aluminum railing SECURILISSE® GC-RE

The SECURILISSE® GC-RE railing is a collective fall protection system. It is designed for roofs inaccessible to the public and is the ideal solution for mounting under the coping. The socket is fastened onto the top of the parapet wall underneath the coping. • Quick to install • Maintenance-free • Attractive design • Protects waterproofing upstands Material : aluminium Finish : raw, anodised or powder-coated Technical information : Supplied with instructions and drawings available on the internet : extranet. Straight railing without midrail: GC-RE1 The SECURILISSE® GC-RE2 is used for installation on a parapet wall with coping with a height between 100 mm and 570 mm inclusive. Garde-corps droit sans sous-lisse : GC-RE1 The SECURILISSE® GC-RE1 is used for installation on a parapet wall with coping with a height over 570 mm. Offset version of the railing installed over waterproofing: GC-RE1 D & GC-RE 2 D The SECURILISSE® GC-RE1 D are railings suitable for parapet walls with an insulation membrane and coping. The GC-RE socket is bolted onto the offset bracket. This is fastened onto the top of the parapet wall underneath the coping.
