Railing on steel deck SECURILISSE® GC-BA

aluminum

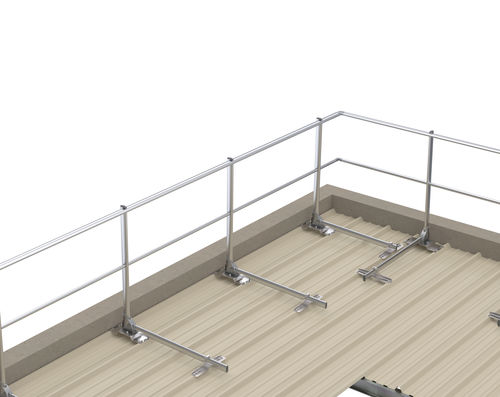

The SECURILISSE® GC-BA railing is a collective fall protection system for securing roofs inaccessible to the public and equipped with steel decking. The supports are fixed parallel to perpendicular onto the corrugations in the steel decking (210 mm to 330 mm) using self drilling screws, and sealed by a special sealing strip. • Quick to install • Available from stock • Maintenance-free • Attractive design Material : aluminium support : stainless steel or zinc-plated steel Finish : raw, anodised or powder-coated Technical information : Supplied with instructions and drawings. Available on the internet : extranet. Straight railing with midrail: GC-BA-D The SECURILISSE® GC-BA-D is used for installation on roofs with steel decking and a minimum 100 mm parapet. Inclined railing with midrail: GC-BA-I The version with a 10° slope will be chosen for aesthetic reasons as the railing is less visible from the ground. It can also be used to compensate for an incline in the roof.
