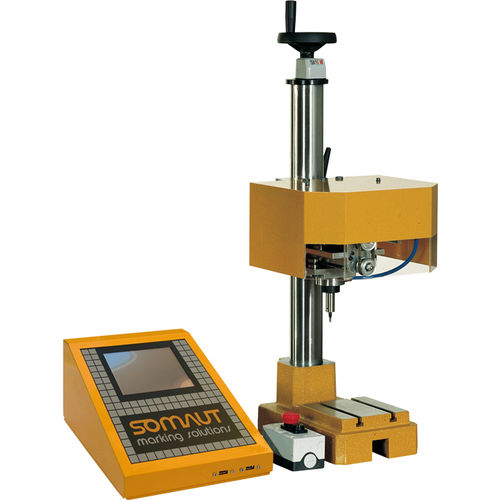

Dot peen marking machine S33

metalbenchtopfor cylindrical parts

- Marking unit with hard metal stylus moved by XY axes systems that are driven by stepper motors. - Control unit for marking cycles as well as the control of the marking unit. - An interface consisting of a comfortable 8” color touch-screen display with an icon-based used friendly program. - Remote control to start marking or for emergency stop. - Power cord and cable connection between units. - Pressure reducer with air filter. TECNHNICAL CHARACTERISTICS ✓ Total weight 50 kg ✓ Manual Z axis with handwheel ✓ Working surface with standard base: 160 x 160 mm ✓ Alimentazione elettrica : 100 + 240 V; 50 + 60 Hz ✓ Pneumatic power supply: maximum 6 bars ✓ Type size to be freely determined ✓ 8 different series of alphanumeric characters and matrix symbols ✓ Inner clock for date and time functions ✓ Linear, tilted, circular and mirror markings ✓ Sequential numbering ✓ Control protocol available with both serial and Ethernet ports ✓ Two USB slots for improved flexibility of use: data transfers, storing and retrieving, peripherals ✓ Program storing according to homogeneous groups ✓ Assisted diagnostics ✓ Realized on a Linux platform, the system is open for development ✓ Conditions of use : temperature -10 + 400C; humidity 10 + 85% non-condensing The marking unit is of simple and sturdy design to achieve high productivity at low cost. The carbide stylus can engrave metals up to 62 HRc hardness and is designed to mark both concave and convex irregular components. - - - - The marking unit is of simple and sturdy design to achieve high productivity at low cost.
