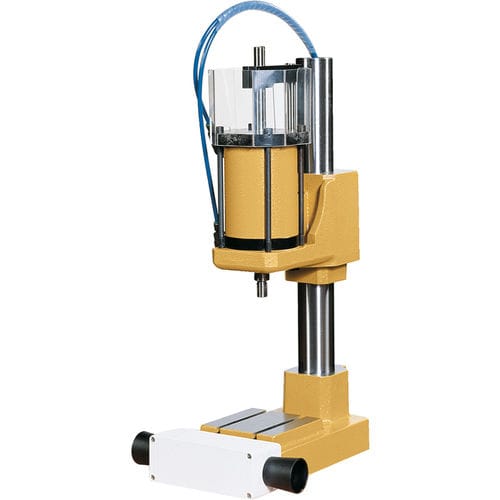

Pneumatic press S8Bbendingstraighteningdrawing
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- bending, straightening, drawing, die-cutting, riveting, trimming
- Other characteristics
- vertical
- Force
7,845.3 N
- Opening
425 mm
(17 in)- Stroke
83 mm
(3.268 in)- Table width
160 mm
(6 in)- Table length
160 mm
(6 in)- Max. pressure
6 bar
(87 psi)- Weight
60 kg
(132 lb)- Overall length
348 mm
(14 in)- Overall width
195 mm
(8 in)- Overall height
855 mm
(34 in)
Description
Available with manual, pneumatic or hydropneumatic control in a range of sizes suitable for riveting, trimming, drawing, keying, sizing, straightening, bending, die-cutting.
Suitable whenever adjustable thrust and accurate stroke control are needed and all models are equipped with a mechanical stop.
Working height of manual and pneumatic models is adjusted by moving the machine body on the column.
Pneumatic bench type presses with adjustable pressure up to 1500 kg - available with cylinder bore 70 - 100 - 125 - 180 mm and rotation preventing pin : S8B - S17B with two-hand safety control
