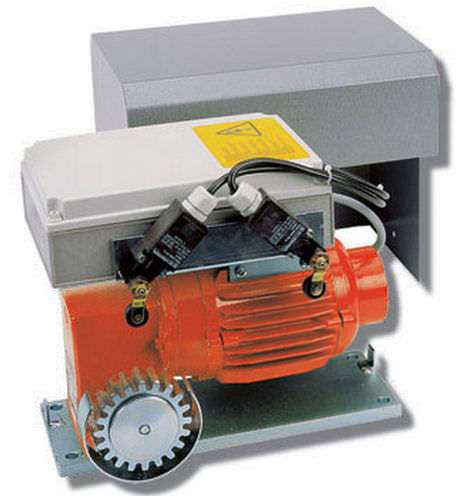

Linear actuator DS 1200electricworm gearfor sliding gates
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- worm gear
- Applications
- for sliding gates
Description
AC 400 V 50/60 Hz
Up to max. 1200 kg
IP 44
Incl. motor controller, prepared for radio receiver Art. no. 7000V000
Self-locking by means of precision worm gear
Motor controller ACM 40 De Luxe
Power supply AC 400 V, 50/60 Hz / 1.1 kW
Opening speed approx. 20 cm/s
Accident protection by means of speed sensor (optical forked photoelectric sensor), steplessly adjustable force
End switching via end switch
Connection options for emergency stop, warning light, photo eyes, electric safety contact strip (8.2 kOhm)
Automatic closing feature adjustable from 2 to 196 seconds
Adjustable dead-man operation
Three-button operation
Partial opening
Operating mode S3 60 %
