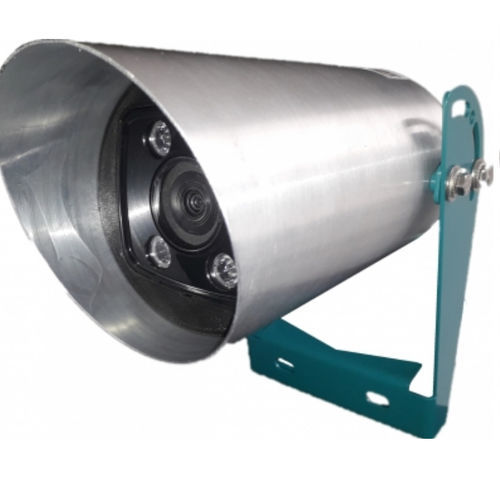

Industrial camera SOMCAM-2S

WDRmonitoringCMOS

The SOMCAM-2S Camera is a high-end serial camera which can be attached to any host system that requires a JPEG compressed still camera for embedded imaging applications. It provides color images down to an illumination of 0.0005 Lux. The camera uses a 1/2.7’’ CMOS color image sensor along with a JPEG compression chip that provides a low powered camera system. The camera has an on-board serial interface (TTL/RS232/RS485) that is ideal for direct connection to the Sommer Messtechnik MRL-7 data logger. FEATURES Colour images down to 0.0005 Lux MRL-7 data logger for automatic image recording and transmission Water proof Compact size FIELDS OF APPLICATION Monitoring of measurement sites and weather conditions Flood warning Monigoring of icing on structures and buidings See here for an application example. TECHNICAL DETAILS Image Sensor 1/2.7'' CMOS Resolution 2 Mega Pixels Image Format Still JPEG compressed Serial Interface TTL RS232/RS485 Focusing Range 20mm to infinity Lens 6mm Minimum Illumination 0.0005LUX Power Supply 5-28V DC, typically 12V DC Protection rating IP67 Power Consumption Typical<80mA, Max<400mA OperatingTemp. -40°C ... +85°C (-40 ... 180°F) Dimension W x H x D 90 x 85 x 193mm
