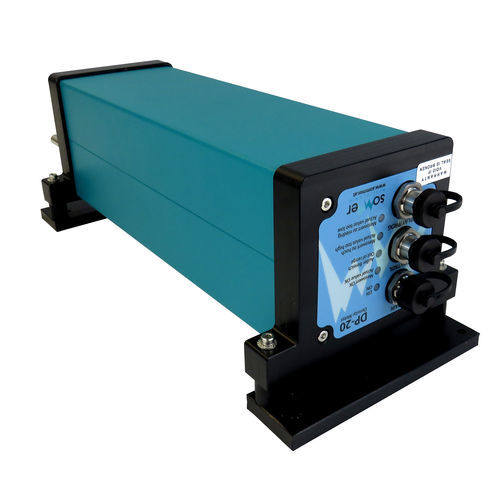

Density meter DP-20

The density meter DP-20 developed by SOMMER Messtechnik detects the concentration of NaCl, CaCl2 or MgCl2 during brine production. It uses an oscillating U-tube and a dedicated transducer to determine the solution density. Through the unique relationship with density the salt concentration is derived. The DP-20 replaces the widely applied DP-10. FEATURES AND ADVANTAGES Real-time measurement In-line and bypass application Digital outputs Facilitates automated mixing Covers wide range of salt solution concentrations Robust construction for applications in demanding environmental conditions Easy installation and operation DENSITY MEASUREMENT MADE EASY Liquid de-icing agents are considered to be an ideal solution to cope with icy roads for a long time. The density meter DP-20 has been especially developed for the requirements of winter road services using brine. Other than the conventional, manual density measurement using a spindle, the DP-20 measures the concentration during the mixing process continuously and in real-time. Depending on the requirements, two device versions can be selected: A standard version (DP-20) and aversion with an internal mixer controller (DP-20MR). Both instruments have analogue and digital outputs for data post-processing. Additionally, both versions can be equipped with an external display to view live data and to configure a main set of parameters.
