Spray atomizing nozzle ZB series
for waternickel-plated brass45°

Spray atomizing nozzle - ZB series - Sommer-Technik - for water / nickel-plated brass / 45°
Spray atomizing nozzle - ZB series - Sommer-Technik - for water / nickel-plated brass / 45°
Spray atomizing nozzle - ZB series - Sommer-Technik - for water / nickel-plated brass / 45° - image - 2
Spray atomizing nozzle - ZB series - Sommer-Technik - for water / nickel-plated brass / 45° - image - 3
Spray atomizing nozzle - ZB series - Sommer-Technik - for water / nickel-plated brass / 45° - image - 4
Spray atomizing nozzle - ZB series - Sommer-Technik - for water / nickel-plated brass / 45° - image - 5
Add to favorites
Compare this product

Characteristics

Function
spray
Fluid
for water
Material
nickel-plated brass
Spray angle
30°, 40°, 45°
Other characteristics
compact
Flow

135 l/min, 152 l/min
(35.66 us gal/min, 40.15 us gal/min)

Pressure

Max.: 8 bar
(116 psi)

Min.: 2 bar
(29 psi)

Media temperature

Max.: 80 °C
(176 °F)

Min.: -25 °C
(-13 °F)

Description

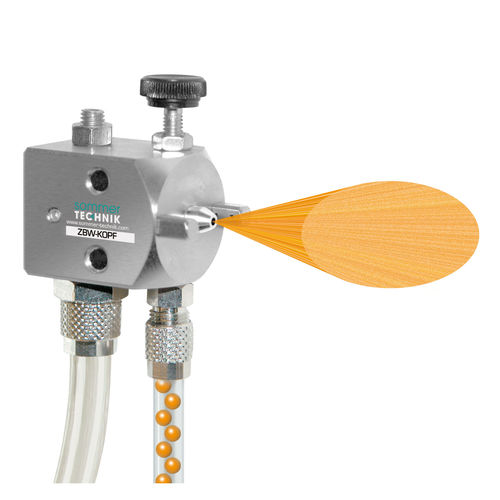

"Full force ahead!" When it comes to covering a large surface from a short distance this atomizer is just the right one to use. Its compact design is ideal for tight spaces. Two stray channels provide a large spray angle and an elliptical spraying range. Contrary to the ZBG, the ZBW is connected ­perpendicular to the spraying direction.
