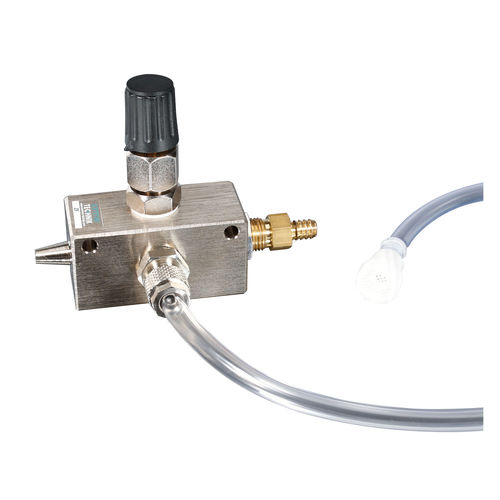

Spray atomizing nozzle ZF

for liquids30°

- For fixed installation ...directly in the machine. This robust model is very suitable for large fluid quantities and thicker oils (max. viscosity 480 mm²/s). The atomizer operates cyclically and continuously. The fluid hose can be placed inside an unpressurized container or be connected to it. The atomizer should always be installed slightly above the max. fluid level inside the container. The fluid is dosed and taken along by the air flow. Spray angle: 30°. Max. air consumption at 6 bar: 70 l norm./min. Sound level: 77 dB. Measuring examples for suction volumes in 1 min. at 20 °C: ISOVG150 - - 2.3 ml at 5 bar 2.1 ml at 3 bar Water - - 70 ml at 5 bar 63 ml at 3 bar
