Lubricating gun OS series

manualpneumatic

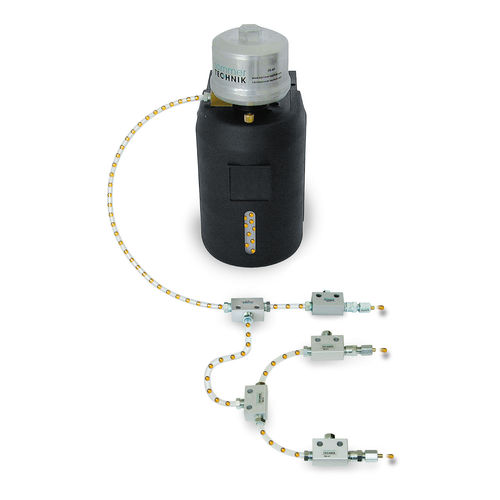

- For environmentally safe and targeted lubrication Targeted lubrication in hard to access locations… often only a single drop of oil is needed in the right spot. The oil gun sprays with precision up to a distance of 1 m (depending on viscosity and pulse frequency). Its area of application – wherever there is little space and cleanliness is a must. Each drop reaches its target. So, lubricating can be economical and free of health hazards (without oily mist). Viscosity: 10 - 150 mm2/sec. (medium oils) without adhesives, without solids. Operating temperature: -25 °C...+80 °C Max. clock speed: 160/min. (measured at a viscosity of 150 mm2/sec.) Model with Viton-seals, Order-No: OS-BP/V, OS-BP4,5/V How it works: The pneumatic operating pressure is 4 - 8 bar. The function is actuated by a 3/2 way-valve (Order-No. MV26-3218-30 (= 24 VDC) or MV26-3218-06 (= 230 VAC)). The pump container has to be installed vertically, as shown. The oil is pressed through a pressure cylinder into the lines at an approx. pressure of 50 bar. The oil is released by the dosing valve (5 – 100 mm³). All parts are ready to connect at the time of delivery, only the hoses (Order-No. S-PA4 – refer to the chart) must be ordered, cut, and installed as needed. A max. expansion for up to 8 lubricating points is possible with 2 V4-distributors. Before each dosage valve a V1 dispenser is inserted for venting the supply pipe. The dosage valves have fixed dosages and are not adjustable. They can be exchanged according to your needs. Remark: With increasing viscosity, reach and cycle frequency will decrease.
