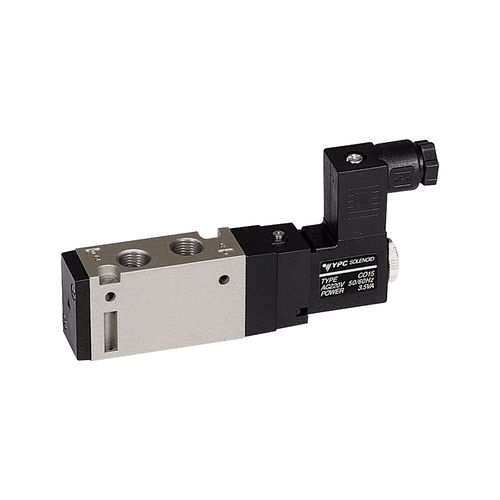

Spool pneumatic directional control valve MV seriessolenoid-operated5/2-wayspring-return
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- solenoid-operated
- Ports/positions
- 5/2-way
- Other characteristics
- spring-return, standard
- Operating pressure
Min.: 2 bar
(29 psi)Max.: 10 bar
(145 psi)- Flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 590 l/min
(156 us gal/min)
Description
Good and reasonably priced
are the following standard valve series either available in 24 VDC or 230 VAC.
Model: - -
5/2 way
Connection: - -
G 1/8"
Protection type: - - IP65
Medium: - - Oiled and non-oiled, filtered air
Power input: - - DC: 2.5 W / AC: 3.5 VA (60 Hz)
Switching time: - - < 25 ms
Temperature: - - -10 °C...+60 °C
