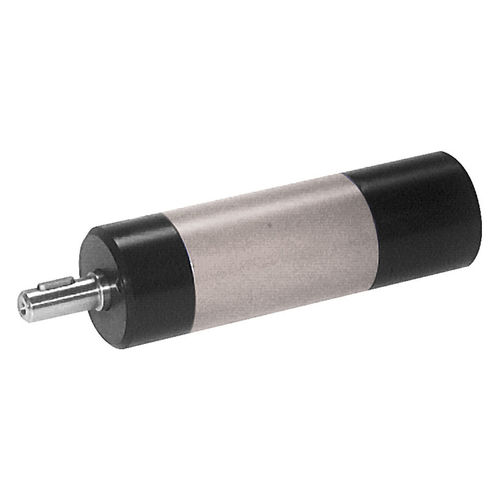

Vane air motor R series
flangesteel

vane air motor
vane air motor
vane air motor
vane air motor
vane air motor
Add to favorites
Compare this product


Characteristics

Technology.
vane
Other characteristics
flange, steel
Torque

Max.: 25 Nm
(18.44 ft.lb)

Min.: 0.7 Nm
(0.52 ft.lb)

Rotational speed

Max.: 4,620 rpm
(29,028.32 rad.min-1)

Min.: 7 rpm
(43.98 rad.min-1)

Power

180 W, 300 W

Description

Max. load on shaft: radial 800 N / axial 1600 N Temperature range: Compressed air temperature: +10 °C...+40 °C, max. environmental temperature: + 80 °C Optional: Mounting flange -FL, mounting bracket -W
