Core drilling drilling rig LEVENT 1001

explorationcrawlerrotary

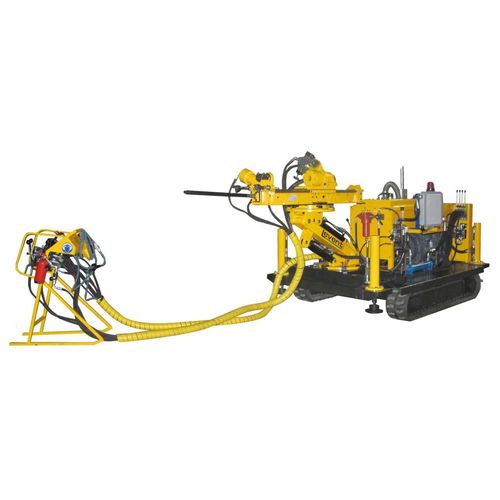

Product Description – L01 LEVENT 1001 is the smallest and most compact, all-hydraulic mechanized core drill rig in LEVENT range. LEVENT 1001 is ideal for grout hole drilling and coring in narrow tunnels as well as in cramped spaces underground. The core drill is equally efficient for surface drilling operations. The compact design and light weight, makes the LEVENT 1001 easy and fast to set-up for drilling. This in turn offers quicker moves between drill sites, without disturbing normal production routines in the mine, or grouting sequences in dam galleries. Bearing in mind the core drill’s speed of rotation, its rating and chuck diameter,LEVENT 1001 is best suited to drill holes 36-46mm in diameter. Max. spindle bore diameter is 50mm. The below drill depth capacities only serve as guidelines and refer to vertical down drilling. SON-MAK cannot guarantee that these results can be achieved in all drilling conditions.
