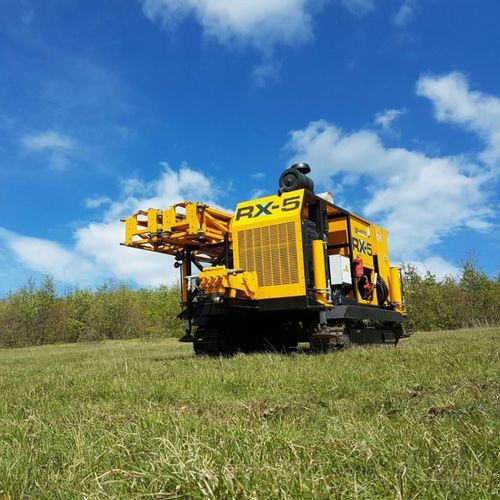

Core drilling drilling rig LEVENT 2002 RX-5

explorationmultifunctioncrawler

Product Description – LR05 Levent 2002 RX-5 is fully hydraulic diamond core drilling rig, designed for surface research drillings. Levent 2002 RX-5 drilling rig rotation speed, power and rotation unit aperture diameter is designed to give optimal performance in 60-122.6 mm (B-P) diameter wireline or conventional drilling. Levent 2002 RX-5, drilling unit, power unit, wireline unit, main winch control of the mixer and mud pump are performed from the operator panel. The gauge located on the operator panel displays, drilling rig advancement position; – Hold back force, – Feed force, – Rotation speed, It can observe the data and is able to control diesel engine. Levent 2002 RX-5, can be mounted on 3 different chassis. – Skid frame – Wheel frame – Crawler frame Levent 2002 RX-5 drilling rig, as progress is being achieved with the drilling rig hydraulic cylinder, more precise settings can be done. Levent 2002 RX-5 drilling rig, automatic rod removal and clamping feature allows high progress rate, optimal core percentage and big time save.
