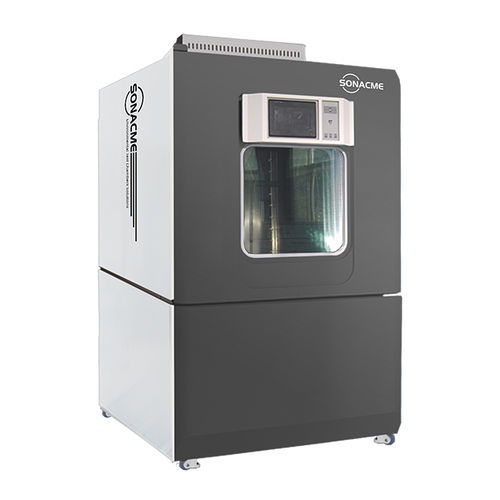

Rapid temperature cycling test chamber SR/xxx/70/25(H) series
climatichumiditytemperature

Rapid temperature cycling test chamber - SR/xxx/70/25(H) series - SONACME Technology - climatic / humidity / temperature
Rapid temperature cycling test chamber - SR/xxx/70/25(H) series - SONACME Technology - climatic / humidity / temperature
Rapid temperature cycling test chamber - SR/xxx/70/25(H) series - SONACME Technology - climatic / humidity / temperature - image - 2
Rapid temperature cycling test chamber - SR/xxx/70/25(H) series - SONACME Technology - climatic / humidity / temperature - image - 3
Rapid temperature cycling test chamber - SR/xxx/70/25(H) series - SONACME Technology - climatic / humidity / temperature - image - 4
Rapid temperature cycling test chamber - SR/xxx/70/25(H) series - SONACME Technology - climatic / humidity / temperature - image - 5
Rapid temperature cycling test chamber - SR/xxx/70/25(H) series - SONACME Technology - climatic / humidity / temperature - image - 6
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
environmental, for rapid temperature cycling, ESS, aging, durability, stress, analysis
Application domain
for the aeronautical industry, for quality control, European standards-compliant, international standards-compliant
Product applications
for battery, for electrical equipment, for materials testing machines, for solar panels, for vehicles, for automobiles, for motors, for auto lamp, glass, for electronic circuit boards, for semiconductors, for composite materials
Configuration
floor-standing
Light source
white LED
Protection level
explosion-proof
Options and accessories
with window, with temperature and climatic control, with cyclical temperature/humidity control, remote-controlled
Other characteristics
stainless steel, low-temperature, for high temperatures, automatic, high-capacity, accelerated, energy-saving
Capacity

340 l, 600 l, 1,000 l
(90 gal, 159 gal, 264 gal)

Temperature

Min.: -70 °C
(-94 °F)

Max.: 180 °C
(356 °F)

Length

500 mm, 1,800 mm, 2,000 mm, 2,050 mm
(19.69 in, 70.87 in, 78.74 in, 80.71 in)

Width

1,100 mm, 1,250 mm, 1,450 mm
(43.3 in, 49.2 in, 57.1 in)

Depth

1,250 mm, 1,980 mm, 2,250 mm, 2,450 mm
(49 in, 78 in, 89 in, 96 in)

Description

The rapid temperature change test chambers can set different stress screening temperature change rates: 5℃/Min, 10℃/Min, 15℃/Min, 20℃/Min, 25℃/Min. Temperature humigity cycling stress screening is the use of temperature acceleration techniques (cycle within the upper and lower limit temperature, the product produces alternating expansion and contraction) under the design strength limit of the product to change the external environmental stress. Meet the stress screening of electronic equipment products, MIL-STD-2164, MIL-344A-4-14, MIL-2164A-19, NABMAT-9492, GJB-1032-90, GJB/Z34-516, IPC-9701... etc. Test requirements. The stress screening test of the rapid temperature change test chamber from room temperature is based on MIL-STD-2164 and IEC 60068-2-14. When performing the temperature cycle stress screening test, it needs to start from room temperature, which is the same as the traditional thermal shock test. The experiment is different. Structural Features The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked. The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched. The insulation material is made of polyurethane foam with thicknessof 100mm. The door seal adopts double silicon rubber sealing material. The observation window is 4 layers of tempered glass, the size you can choose by yourself. In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.
