Climate chamber SR/IPX56/1000
temperaturerainEuropean standards-compliant

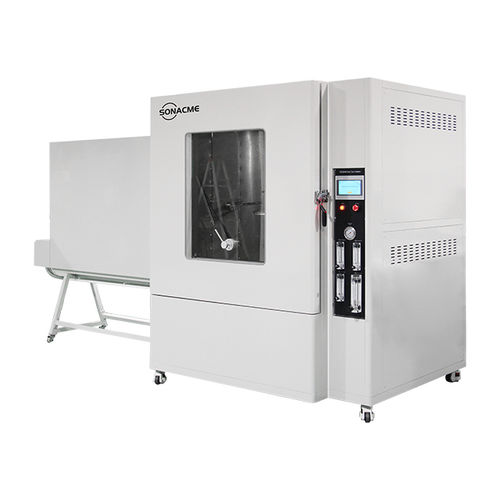

Climate chamber - SR/IPX56/1000 - SONACME Technology - temperature / rain / European standards-compliant
Climate chamber - SR/IPX56/1000 - SONACME Technology - temperature / rain / European standards-compliant
Climate chamber - SR/IPX56/1000 - SONACME Technology - temperature / rain / European standards-compliant - image - 2
Climate chamber - SR/IPX56/1000 - SONACME Technology - temperature / rain / European standards-compliant - image - 3
Climate chamber - SR/IPX56/1000 - SONACME Technology - temperature / rain / European standards-compliant - image - 4
Climate chamber - SR/IPX56/1000 - SONACME Technology - temperature / rain / European standards-compliant - image - 5
Climate chamber - SR/IPX56/1000 - SONACME Technology - temperature / rain / European standards-compliant - image - 6
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature
Test type
rain
Application domain
for the aeronautical industry, for the pharmaceutical industry, for quality control, European standards-compliant
Product applications
for electrical equipment, for battery, for electronic circuit boards, for solar panels, for vehicles, for automobiles, for aircraft, for motors, for engine, device, for semiconductors, for composite materials, for materials testing machines, for sensors, for auto lamp, for wires
Configuration
floor-standing
Protection level
waterproof
Options and accessories
with window, with sample preparation
Other characteristics
stainless steel
Capacity

Max.: 2,000 l
(528 gal)

Min.: 500 l
(132 gal)

Length

Max.: 1,500 mm
(59.06 in)

Min.: 800 mm
(31.5 in)

Width

Max.: 1,500 mm
(59.1 in)

Min.: 800 mm
(31.5 in)

Depth

Max.: 1,500 mm
(59 in)

Min.: 800 mm
(31 in)

Description

The Rain Test Chamber IPX 123456 is suitable for testing the IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 waterproof levels of the product. The shell is made of domestic steel plate, and the surface is sprayed with paint, which is beautiful and durable. Suitable for outdoor lamps, household appliances, auto parts and other electronic and electrical products. Standard Test The rain comprehensive waterproof test chamber IPX123456 complies with IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)", GB4208-2017 "Enclosure protection level (IP code)" 14.2.1, 14.2. 2 Clauses and Figure 3, 14.2.3, 14.2.4 Clauses, Figure 4, 14.2.5, 14.2.6 Clauses, Figure 6 and GB7000.1 "Lamps Part: General Requirements and Tests" 9.2.3, 9.2.4, 9.2.5 Requirements in clauses 9.2.6, 9.2.7, Figure 9.4, and 9.5. Structural Features • The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked. • The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched. • The insulation material is made of polyurethane foam with thicknessof 100mm. • The door seal adopts double silicon rubber sealing material. • The observation window is 4 layers of tempered glass, the size you can choose by yourself. • In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.

VIDEO
