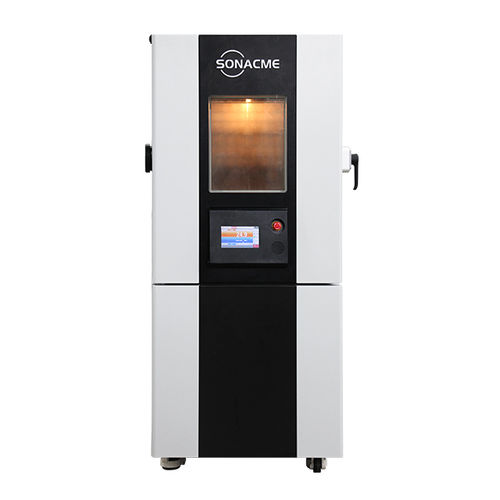

Thermostatic test chamber SR/180/40/10

temperaturefor altitude flight simulationfor driving simulation

Application area 1. The rapid temperature change test chambers can set different stress screening temperature change rates: 5℃/Min, 10℃/Min, 15℃/Min, 20℃/Min, 25℃/Min. 2. Temperature humigity cycling stress screening is the use of temperature acceleration techniques (cycle within the upper and lower limit temperature, the product produces alternating expansion and contraction) under the design strength limit of the product to change the external environmental stress, which is the thermal stress and strain generated in the product , By accelerating the stress to make the defects latent in the product surface, so as to avoid the failure of the product when it is subjected to the environmental stress test during use, causing unnecessary losses. 3. Meet the stress screening of electronic equipment products, MIL-STD-2164, MIL-344A-4-14, MIL-2164A-19, NABMAT-9492, GJB-1032-90, GJB/Z34-516, IPC-9701... etc. Test requirements. Structural Features 1. The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked. 2. The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched. 3. The insulation material is made of polyurethane foam with thicknessof 100mm. 4. The door seal adopts double silicon rubber sealing material. 5. The observation window is 4 layers of tempered glass, the size you can choose by yourself. 6. In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.
