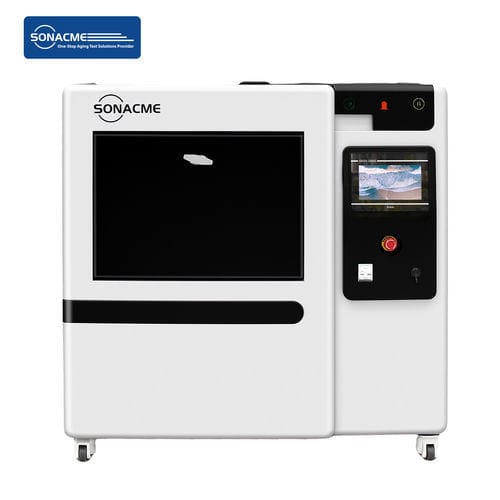

Altitude flight simulation test chamber SX/1000/H
for color assessmentsolar simulationdurability

altitude flight simulation test chamber
altitude flight simulation test chamber
altitude flight simulation test chamber
altitude flight simulation test chamber
altitude flight simulation test chamber
altitude flight simulation test chamber
altitude flight simulation test chamber
Add to favorites
Compare this product


Characteristics

Test type
for altitude flight simulation, for color assessment, solar simulation, durability
Application domain
for the aeronautical industry, for small parts production, European standards-compliant, for quality control
Product applications
thermoplastic pipe, for electronic circuit boards, for sensors, for composite materials, for semiconductors, for electrical equipment, for automobiles, for motors, for engine, for windows, glass, for materials testing machines, for auto lamp, for asphalt, device, for wires, for solar panels
Configuration
compact, modular, on casters
Light source
xenon, sunlight, with xenon arc lamp
Protection level
anti-yellowing
Options and accessories
with window
Other characteristics
accelerated, stainless steel
Temperature

Min.: 30 °C
(86 °F)

Max.: 90 °C
(194 °F)

Length

1,000 mm
(39.37 in)

Width

650 mm
(25.6 in)

Depth

1,020 mm
(40 in)

Power

2,500 W, 3,500 W

Description

Application area 1. Compared with the bench-top xenon lamp aging test chamber, the small xenon lamp aging test chamber adds a spray function to simulate the influence of rain or other moisture when the material is actually used outdoors. At the same time, it can also pass Monitor the total radiant energy value obtained by the sample during the test to control the interruption of the test. 2. The operator can arbitrarily set various parameters (irradiation energy, irradiation time, blackboard temperature, spray time, etc.) required for the test through the man-machine interface, and can check the operating status of the machine at any time. The operating parameters during the test can be Download directly to the computer via the USB interface.
