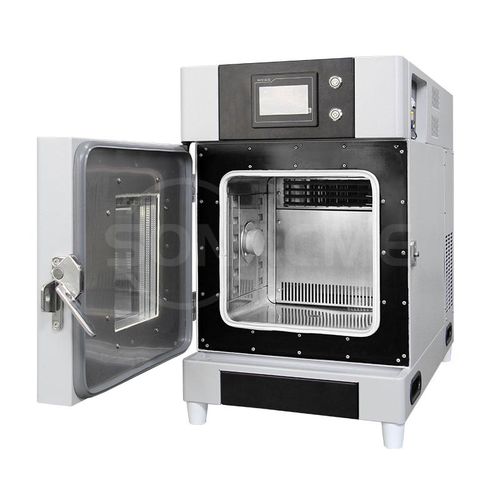

Climate chamber ST/22/40(H)
temperaturehumidityenvironmental

Climate chamber - ST/22/40(H) - SONACME Technology - temperature / humidity / environmental
Climate chamber - ST/22/40(H) - SONACME Technology - temperature / humidity / environmental
Climate chamber - ST/22/40(H) - SONACME Technology - temperature / humidity / environmental - image - 2
Climate chamber - ST/22/40(H) - SONACME Technology - temperature / humidity / environmental - image - 3
Climate chamber - ST/22/40(H) - SONACME Technology - temperature / humidity / environmental - image - 4
Climate chamber - ST/22/40(H) - SONACME Technology - temperature / humidity / environmental - image - 5
Climate chamber - ST/22/40(H) - SONACME Technology - temperature / humidity / environmental - image - 6
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
environmental
Configuration
benchtop, horizontal, vertical
Options and accessories
with window, with temperature and climatic control, with cyclical temperature/humidity control
Other characteristics
automatic, low-temperature, stainless steel, for high temperatures
Capacity

22 l
(6 gal)

Temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Width

1,450 mm
(57.1 in)

Depth

1,200 mm
(47 in)

Description

Application Area 1. The Bench-Top Type Temperature Humidity Chamber is very suitable for temperature and humidity testing of small samples and specimens used for research, development and quality control. Daily necessities, cosmetics, electronic components, and medical products must meet certain quality standards and testing specifications. 2. Perform temperature testing in the smallest space. 3. Product functionality and usability are guaranteed in the early stages of the R&D laboratory. Limited laboratory space and the need to test small samples directly in the workplace require compact, mobile and quiet instruments. Structural Features 1. The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked. 2. The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched. 3. The insulation material is made of polyurethane foam with thicknessof 100mm. 4. The door seal adopts double silicon rubber sealing material. 5. The observation window is 4 layers of tempered glass, the size you can choose by yourself. 6. In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.
