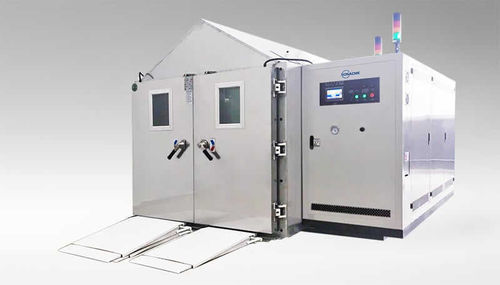

Salt spray corrosion test chamber SSC/xxx(TH) series
climatichumiditytemperature

Salt spray corrosion test chamber - SSC/xxx(TH) series - SONACME Technology - climatic / humidity / temperature
Salt spray corrosion test chamber - SSC/xxx(TH) series - SONACME Technology - climatic / humidity / temperature
Salt spray corrosion test chamber - SSC/xxx(TH) series - SONACME Technology - climatic / humidity / temperature - image - 2
Salt spray corrosion test chamber - SSC/xxx(TH) series - SONACME Technology - climatic / humidity / temperature - image - 3
Salt spray corrosion test chamber - SSC/xxx(TH) series - SONACME Technology - climatic / humidity / temperature - image - 4
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
for driving simulation, salt spray corrosion, for altitude flight simulation
Application domain
for the aeronautical industry, for the pharmaceutical industry, for quality control, European standards-compliant, international standards-compliant, for small parts production
Product applications
for electrical equipment, for battery, for solar panels, for windows, glass, for vehicles, for electronic circuit boards, for automobiles, for aircraft, for motors, for sensors, for engine, device, for materials testing machines, for semiconductors, for test benches, for auto lamp, for composite materials, for wires
Configuration
floor-standing, compact, modular
Light source
white LED
Options and accessories
with window, with temperature and climatic control, with sample preparation
Other characteristics
stainless steel, low-temperature, for high temperatures, high-capacity, accelerated, constant
Capacity

480 l, 1,440 l, 1,800 l, 8,000 l
(127 gal, 380 gal, 476 gal, 2,113 gal)

Temperature

Min.: -70 °C
(-94 °F)

Max.: 180 °C
(356 °F)

Length

2,200 mm, 2,800 mm, 3,000 mm, 3,200 mm
(86.61 in, 110.24 in, 118.11 in, 125.98 in)

Width

1,200 mm, 1,450 mm, 1,650 mm, 2,350 mm
(47.2 in, 57.1 in, 65 in, 92.5 in)

Depth

1,450 mm, 1,600 mm, 2,150 mm, 2,800 mm
(57 in, 63 in, 85 in, 110 in)

Description

In the Temperature Humidity Salt Spray Corrosion Test Chamber, the samples will undergo cyclic tests that simulate different outdoor natural environments. Simple cycle tests, such as the Prohesion cycle test, only need to cycle tests under salt spray and dry conditions. More complex automotive cyclic corrosion tests require multi-step cycles, including moisture or condensation, salt spray, and dry environments. Applicable industries: paint testing institutions, automobiles, other quality inspections, scientific research institutions, automobiles, motorcycles, accessories, aluminum profiles, steel, etc. Refrigeration System • Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made). • Shock absorption and noise reduction process,slow down the vibration, protect the compressor. • The new pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently. • It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment. • MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.
