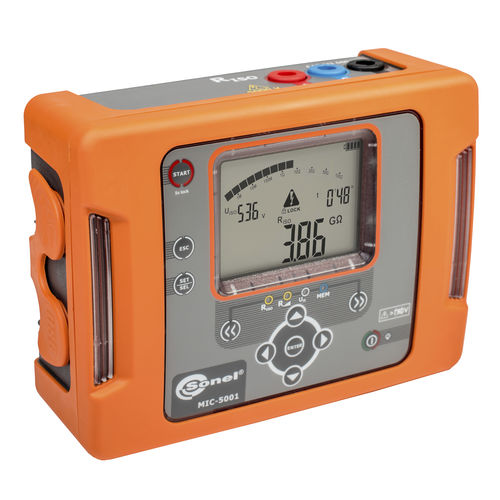

Insulation tester MIC-5001

insulation resistanceelectricdielectric

Measurement to 5 TΩ Measuring voltage selectable from 50 V to 500 V range in 50 V steps, and from 500 V to 5000 V range in 100 V steps Continuous indication of insulation resistance or leakage current Automatic discharge of stored charge due to capacitance of tested object after the insulation resistance measurement Audio beeps every five seconds to alert user test is proceeding, and to get time characteristics Measured test times of T1, T2 and T3 for measuring Absorption Coefficient, Dielectric Absorption Ratio DAR. and Polarization Index PI Continuous display of test voltage during the measurement Protection against measuring live objects Two and three-lead measurement method Ramp Test Insulation resistance measurement Measurement of breakdown voltage with increments up to 1 kV / s Measurement of alternating and direct voltages from 0 V to 750 V 990 cells of memory (11880 records) to record results Data transfer to PC via USB cable Built-in rechargeable battery pack Meets the requirements of the EN 61557 standard Charge from optional car lighter (12 V) socket accessory
