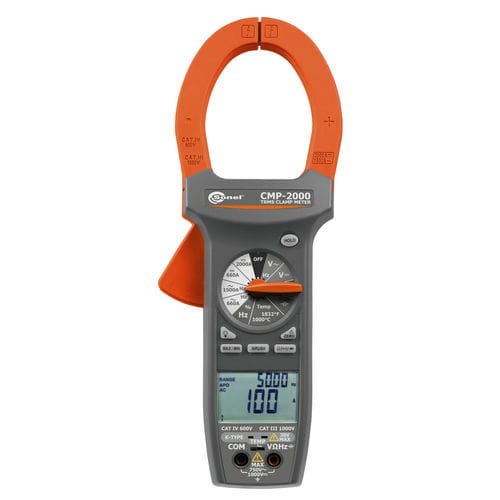

Digital clamp multimeter CMP-2000portable1000 V2000 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 2000 A
- Safety rating
- cat III, cat IV
- Additional features
- frequency, with thermometer
- Protection level
- rugged
- Applications
- industrial, for HVAC, for electric vehicles
- Other characteristics
- AC/DC, true RMS, autorange
- Max DC voltage
Max.: 1,000 V
Min.: 0 V
- Max AC voltage
Max.: 750 V
Min.: 0 V
- Max DC current
Max.: 2,000 A
Min.: 0 A
- Max AC current
Max.: 1,500 A
Min.: 0 A
- Max resistance measure
Max.: 66,000,000 Ohm
Min.: 0 Ohm
- Max capacity measure
Max.: 7 mF
Min.: 0 mF
- Max frequency measure
Max.: 1,000,000 Hz
Min.: 0 Hz
- Max DC voltage resolution
Max.: 1 V
Min.: 0 V
- Max AC voltage resolution
Max.: 1 V
Min.: 0 V
- Max DC current resolution
Max.: 1 A
Min.: 0.1 A
- Max AC current resolution
Max.: 1 A
Min.: 0.1 A
- Max resistance resolution
Max.: 10,000 Ohm
Min.: 0.1 Ohm
- DC voltage precision
Max.: 0.5 %
Min.: 0.5 %
- AC voltage precision
Max.: 1.5 %
Min.: 1.5 %
- DC current precision
Max.: 5 %
Min.: 2 %
- AC current precision
Max.: 5 %
Min.: 2 %
- Resistance precision
Max.: 3.5 %
Min.: 1 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
53 mm
(2.09 in)- Width
108 mm
(4.25 in)- Height
281 mm
(11.06 in)- Weight
570 g
(20.11 oz)
Description
Universal clamp meter, enabling the maintenance of current measurements up to 2000 A, with the diameter of the clamp as 57 mm, and bus bar to 70 * 18 mm
The instrument has an electronic overload protection of all functions and ranges.
It provides:
AC current measurement (TRUE RMS) up to 1500 A and DC up to 2000 A.
Measurement of INRUSH current in start-up phase of electrical device.
AC voltage measurement (TRUE RMS) up to 750 V and DC up to 1000 V.
Resistance measurement and continuity test:
- continuity test with acoustic signalling (beeper) for resistance below 30 Ω.
Capacitance measurement.
Temperature measurement (Fahrenheit or Celsius).
Frequency measurement.
Duty cycle measurement.
Diode test.
