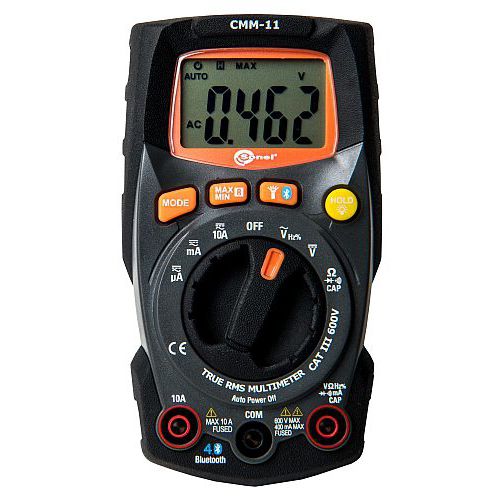

Digital multimeter CMM-11portable600 V10 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 10 A
- Safety rating
- cat III
- Additional features
- frequency
- Protection level
- rugged
- Applications
- industrial, service
- Other characteristics
- AC/DC, true RMS, autorange, low-impedance, Bluetooth
- Max DC voltage
Max.: 600 V
Min.: 0 V
- Max AC voltage
Max.: 600 V
Min.: 0 V
- Max DC current
Max.: 10,000 mA
Min.: 0 mA
- Max AC current
Max.: 10,000 mA
Min.: 0 mA
- Max resistance measure
Max.: 40,000,000 Ohm
Min.: 0 Ohm
- Max capacity measure
Max.: 4,000,000 nF
Min.: 0 nF
- Max frequency measure
Max.: 100,000 Hz
Min.: 0 Hz
- Max DC voltage resolution
0 V
- Max AC voltage resolution
0 V
- Max DC current resolution
0 mA
- Max AC current resolution
0 mA
- Max resistance resolution
0.1 Ohm
- DC voltage precision
1 %
- AC voltage precision
1 %
- DC current precision
1 %
- AC current precision
1 %
- Resistance precision
1 %
- Process temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Length
67 mm
(2.64 in)- Width
35 mm
(1.38 in)- Height
121 mm
(4.76 in)- Weight
206 g
(7.27 oz)
Description
The CMM-11 multimeter is designed for quick diagnostics of devices and electric circuits. Thanks to an ergonomic design and pocket size, CMM-11 will find a place in every tool bag and will not take much space. It has all basics measuring functions, and thanks to the rubberized housing is not endangered by falls from up to 2,5 meters and mechanical damages. It's the perfect solution for every electrician, fitters, installers and maintenance services.
