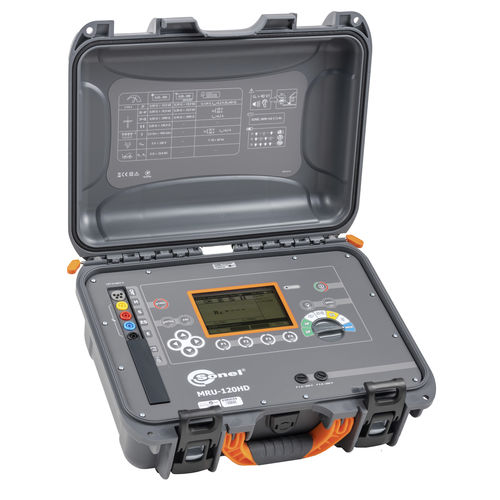

Earth resistance tester MRU-120HD

electricground bondelectrical safety

Heavy-duty earthing and soil resistivity meter The Sonel MRU-120HD earth resistance and soil resistivity meter is a robust and functional device characterised by particular resistance to difficult working conditions. It is not afraid of dust or mud and performs excellently even in areas where there is an increased risk of splashing. With the use of the Sonel MRU-120HD meter it is possible to perform earth resistance measurements using the 3-pole and 4-wire method. The instrument also allows measurements to be made using additional clamps (multiple earthing - without the need to disconnect the monitoring connections) and measurements using the two-clamp method. In some cases, the measurement can be done without the use of auxiliary probes driven into the ground. Sonel MRU-120HD is a tool designed especially for earthing measurements in the power industry. Measuring range (measurements in accordance with EN 61557) from 0.30 Ω. Application MRU-120HD was created for the most difficult working conditions. It generates a measuring current exceeding 200 mA, which provides effective measurements of grounding of energy objects such as transformer stations and power stations. Thanks to the methods using clamps, it is not necessary to disconnect the control connectors, which is sometimes a very tedious operation. This plays a special role when performing works on objects exposed to weather conditions, where the connecting elements are sometimes corroded or tarnished. The graphical user interface provides clear readings and explicit messages. This translates into quick, trouble-free service.
