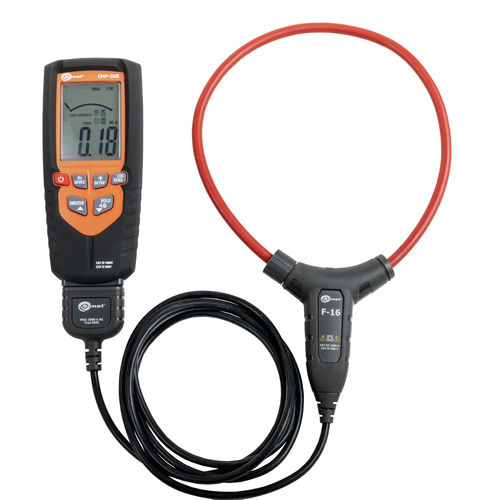

Digital clamp multimeter CMP-3kR
portablecat IVfrequency

digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Safety rating
cat IV
Additional features
frequency
Protection level
rugged
Applications
industrial
Other characteristics
true RMS, AC, autorange, Bluetooth
Max AC current

Max.: 3,000 A

Min.: 0.01 A

Max frequency measure

Max.: 400 Hz

Min.: 0 Hz

Max AC current resolution

Max.: 1 A

Min.: 0.01 A

AC current precision

Max.: 3 %

Min.: 3 %

Process temperature

Max.: 40 °C
(104 °F)

Min.: 5 °C
(41 °F)

Length

65 mm
(2.56 in)

Width

35 mm
(1.38 in)

Height

150 mm
(5.91 in)

Weight

240 g
(8.47 oz)

Description

The Sonel CMP-3kR is an innovative AC current clamp meter which combines technically advanced solutions The handy digital AC clamps meter with a recorder is a professional tool for measuring AC current up to 3000 A. Unlike competitive instruments, the CMP-3kR is equipped with flexible clamps with a diameter of 160 mm and a cable length of up to 170 cm. This makes operating the device much simpler and safer. The user can maintain greater distance and control also due to the Sonel Multimeter Mobile application - it provides communication with the meter via Bluetooth interface. The bracket on the back of the case allows the use of various types of hangers, including magnetic ones. This small, specialised instrument incorporates a built-in recorder with RTC that can record currents for 24 hours with a recording frequency of 1 second.
