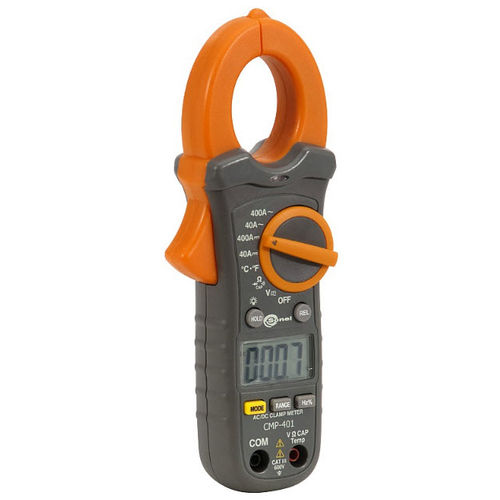

Digital clamp multimeter CMP-401portable600 V400 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 400 A
- Safety rating
- cat III, cat IV
- Additional features
- frequency, with thermometer
- Protection level
- rugged
- Applications
- industrial, for HVAC, for electric vehicles
- Other characteristics
- AC/DC, true RMS, autorange
- Max DC voltage
Max.: 600 V
Min.: 0 V
- Max AC voltage
Max.: 600 V
Min.: 0 V
- Max DC current
Max.: 400 A
Min.: 0 A
- Max AC current
Max.: 400 A
Min.: 0 A
- Max resistance measure
Max.: 40,000,000 Ohm
Min.: 0 Ohm
- Max capacity measure
Max.: 100 µF
Min.: 0 µF
- Max frequency measure
Max.: 10,000 Hz
Min.: 10 Hz
- Max DC voltage resolution
Max.: 1,000 mV
Min.: 0.1 mV
- Max AC voltage resolution
Max.: 1,000 mV
Min.: 0.1 mV
- Max DC current resolution
Max.: 0.1 A
Min.: 0.01 A
- Max AC current resolution
Max.: 0.1 A
Min.: 0.01 A
- Max resistance resolution
Max.: 10,000 Ohm
Min.: 0.1 Ohm
- DC voltage precision
Max.: 2 %
Min.: 0.8 %
- AC voltage precision
Max.: 2 %
Min.: 1.5 %
- DC current precision
Max.: 2.8 %
Min.: 2.5 %
- AC current precision
Max.: 2.8 %
Min.: 2.5 %
- Resistance precision
Max.: 3.5 %
Min.: 1 %
- Process temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Length
70 mm
(2.76 in)- Width
40 mm
(1.57 in)- Height
197 mm
(7.76 in)- Weight
183 g
(6.46 oz)
Description
DC current measurement and AC current.
AC/DC voltage measurement up to 600 V.Resistance measurement and continuity test:
continuity test with acoustic signalling (beeper) for resistance below 50.
Temperature measurement (Fahrenheit and Celsius units).
Frequency measurement.
Capacitance measurement .
Diode test.
Additionally:
safe, insulated measuring clamps,
double molded housing,
autoranging/manual range selection,
DATA HOLD function, for holding measured values,
backlit LCD,
REL function,
over range indication,
AUTO-OFF function.
