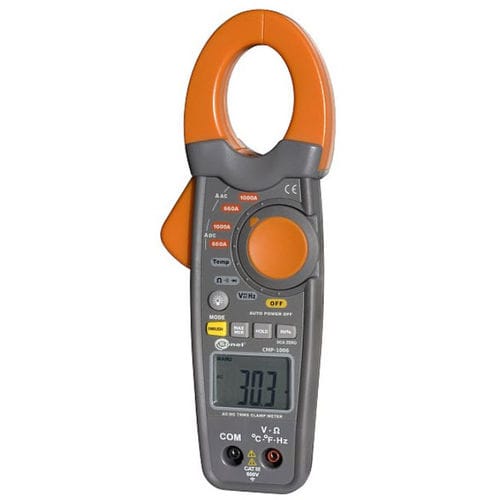

Digital clamp multimeter CMP-1006portable600 V1000 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 1000 A
- Safety rating
- cat III, cat IV
- Additional features
- frequency, with thermometer
- Protection level
- rugged
- Applications
- industrial, for HVAC, for electric vehicles
- Other characteristics
- AC/DC, true RMS, autorange
- Max DC voltage
Min.: 0 V
Max.: 600 V
- Max AC voltage
Min.: 0 V
Max.: 600 V
- Max DC current
Min.: 0 A
Max.: 1,000 A
- Max AC current
Min.: 0.1 A
Max.: 1,000 A
- Max resistance measure
Min.: 0 Ohm
Max.: 66,000,000 Ohm
- Max frequency measure
Min.: 30 Hz
Max.: 15,000 Hz
- Max DC voltage resolution
Min.: 0 V
Max.: 0.1 V
- Max AC voltage resolution
Min.: 0 V
Max.: 0.1 V
- Max DC current resolution
Min.: 0.1 A
Max.: 1 A
- Max AC current resolution
Min.: 0.1 A
Max.: 1 A
- Max resistance resolution
Min.: 0.1 Ohm
- DC voltage precision
Min.: 1.5 %
Max.: 1.5 %
- AC voltage precision
Min.: 1.8 %
Max.: 1.8 %
- DC current precision
Min.: 2.5 %
Max.: 2.8 %
- AC current precision
Min.: 2.5 %
Max.: 2.8 %
- Resistance precision
Min.: 1 %
Max.: 3.5 %
- Process temperature
Min.: 5 °C
(41 °F)Max.: 40 °C
(104 °F)- Length
80 mm
(3.15 in)- Width
49 mm
(1.93 in)- Height
229 mm
(9.02 in)- Weight
303 g
(10.69 oz)
Description
(TRUE RMS) up to 1000 A.
Measurement of INRUSH current in start-up phase of electrical device (high frequency of sampling)
AC/DC voltage measurement (TRUE RMS) up to 600 V.
Resistance measurement and continuity test:
continuity test with acoustic signalling (beeper) for resistance below 40.
Temperature measurement (Fahrenheit and Celsius units).
Frequency measurement.
Duty cycle measurement.
Diode test.
Additionally:
safe, insulated measuring clamps,
autoranging/manual range selection,
DATA HOLD function, for holding measured values,
backlit LCD,
DC ZERO mode of measurement for DC current, possibility to zero the display and reading relative actual value less stored zero value,
MAX/MIN function,
over range indication,
AUTO-OFF function.
