Electric tester MZC-304electrical safetyimpedanceshort-circuit current
Add to favorites
Compare this product
Characteristics
- Test type
- electric, electrical safety, impedance, short-circuit current
- Tested product
- for electrical installations, installation
- Applications
- industrial, diagnostic, for power systems
- Configuration
- portable
- Other characteristics
- digital, automatic, with LCD screen, rugged, with memory
Description

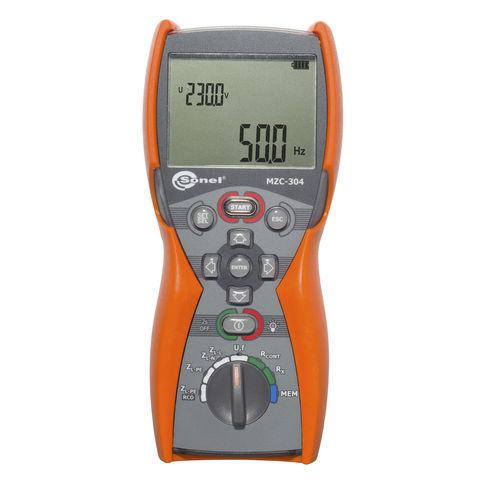

The MZC - 304, manufactured by Sonel®, is a short circuit loop measuring device. Wherein, it measures L-PE circuit, L-N, L-L circuit, and the L-PE(RCD) circuit that is without circuit breaker causing to trip in less than > 30mA. In addition, the low current contains a DC current of +200mA that includes a resistivity reset wire and an acoustic signalling. Furthermore, there are possible installation in 220/380V, 230/400V, 240/415V measurements along with 45...65Hz frequency range. Plus, it has 10 banks of each 99 cells memory and a wireless radio communication.
Catalogs
Sonel Measurement instruments 2023
184 Pages
