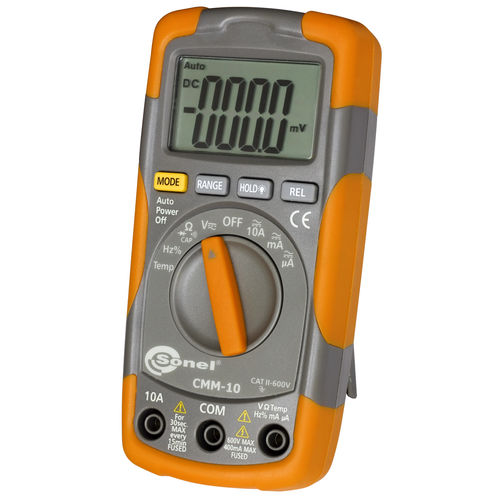

Digital multimeter CMM-10portable600 V10 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 10 A
- Safety rating
- cat II
- Additional features
- frequency, with thermometer
- Protection level
- rugged, IP40
- Applications
- industrial, service
- Other characteristics
- AC/DC, true RMS, autorange
- Max DC voltage
Max.: 600 V
Min.: 0 V
- Max AC voltage
Max.: 600 V
Min.: 0 V
- Max DC current
Max.: 10,000 mA
Min.: 0 mA
- Max AC current
Max.: 10,000 mA
Min.: 0 mA
- Max resistance measure
Max.: 40,000,000 Ohm
Min.: 0 Ohm
- Max capacity measure
Max.: 100 µF
Min.: 0 µF
- Max frequency measure
Max.: 10,000,000 Hz
Min.: 0 Hz
- Max DC voltage resolution
Max.: 1,000 mV
Min.: 0.1 mV
- Max AC voltage resolution
Max.: 1,000 mV
Min.: 0.1 mV
- Max DC current resolution
Max.: 10 mA
Min.: 0 mA
- Max AC current resolution
Max.: 10 mA
Min.: 0 mA
- Max resistance resolution
Max.: 10,000 Ohm
Min.: 0.1 Ohm
- DC voltage precision
Max.: 1.5 %
Min.: 0.5 %
- AC voltage precision
Max.: 2 %
Min.: 1.2 %
- DC current precision
Max.: 2.5 %
Min.: 1 %
- AC current precision
Max.: 3 %
Min.: 1.5 %
- Resistance precision
Max.: 2 %
Min.: 1 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
68 mm
(2.68 in)- Width
37 mm
(1.46 in)- Height
138 mm
(5.43 in)- Weight
210 g
(7.41 oz)
Description
The CMM-10 Series, manufactured by Sonel, is a multi-meter equipped with data hold, REL and auto off function. It has a maximum operating temperature of +50°C, dimensions of 138 x 68 x 37 mm, power supply of 9 V and weight of 210 g. This is used in applications such as automotive airbag testing, audio analyzing and total harmonic distortion analysis.
