Highlights:
7-inch Siemens Touchscreen and PLC
Controlled by the latest generation Siemens touchscreen and PLC system.
Sound Proof
Advanced acoustic sound insulation reduces noise to a minimum.
Filtration System
Recycle-filtration system for filtering waste and mud. The filter is easily replaceable.
Heat Insulation
Thermal insulation ensures the operator is protected from hot surfaces as well as improved durability.
Oil Skimmer
Thermal insulation ensures the operator is protected from hot surfaces as well as improved durability.
Features:
Siemens PLC controller
Siemens 7-inch touchscreen
Agitation system with support for 500kg load
Filtration system
Adjustable laminar flow system
Oil separation system with oil skimmer system
PLC controlled flow system (inlet, LFS)
Automatic lid (diamond-shaped lid *new for 2021)
Motor-driven lift
Temperature variation flow system
Adjustable limit temperature
Air blow gun for parts drying
Auto-fill system
Eco-mode
Stack light and alarm
Programmable functions
Sound insulation
Heating insulation
Custom size and add-on options available according to the client’s request
Specifications:

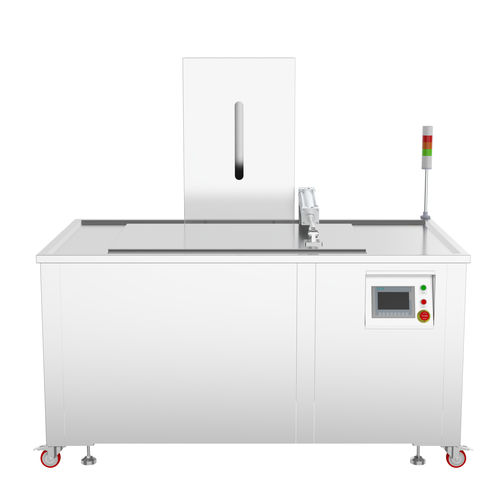

Model : AU-600
Volume *: 600 litres
Tank Size (LxWxH) : 118 x 70 x 36 CM
Basket Size (LxWxH) : 119 x 71.5 x 6 CM
Device Size (LxWxH) : 190 x 170 x 190 CM
Ultrasonic Power : 7200 watts
Heating Power : 18000 watts
Frequency : 28 kHz, 40kHz, …
* Volume is based on the calculations of the dimension of the tank
