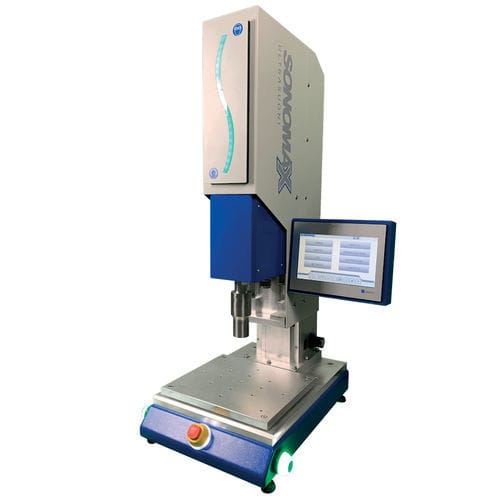

Ultrasonic welding machine PSX series

automaticbenchtop230V single phase

The welding machines of the PSX series are designed to weld plastic materials of different sizes. They are used on the bench or integrated in automatic systems and lines. The digital interface on the backlit display makes it easy to manage the main parameters and allows the operator to work in optimum conditions in order to achieve a perfect weld. Sonotrodes are designed and manufactured with the application in mind to best meet the customer's requirements. Supply voltage: 230V (on request 115V-240V) Noise filter Electro-pneumatic drive Low voltage servo-controlled solenoid valve High precision pressure regulator with semi-automatic/automatic condensate drain filter Pressure switch with adjustable pressure range or alternatively electronically controlled load cell Trigger time adjustment Welding time adjustment Cooling time adjustment Energy regulation Amplitude adjustment 30-100% (optional) Height adjustment via brushless motor (optional) Frequency control Energy control Parts counter Overload protection circuit Temperature protection circuit Cooling fan
