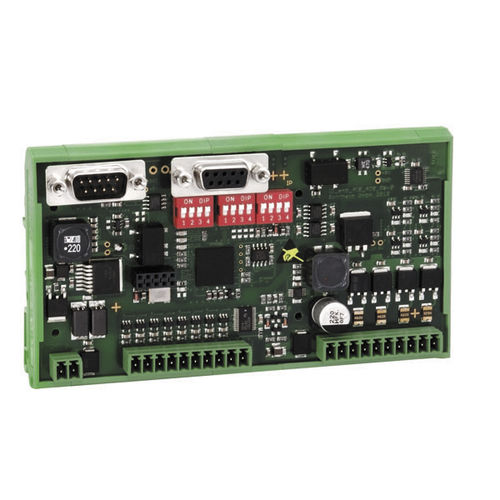

Analog I O module AIO16-L

CANopen8-I/Onetwork

The integrated CAN interface in accordance with CANopen (DS 301 and 401) allows flexible use at different points and positions in the production process. It is designed ac­cor­ding to ISO 11898 and can be bridged. In this way, several modules can be used in ser­ies by looping through the CAN signals. Signal processing and LEDs In addition to the inputs and outputs, the AIO16-L has a powerful microcontroller that handles the acquisition of the sensors, the con­trol of the actuators and the CAN protocol. Fur­ther­more, safety mechanisms such as guar­ding are fully integrated in the Remote IO. The visualization of the current IO states is done via integrated LEDs for each IO. The configuration of the module address and baud rate is done easily and safely via DIP switches on the module. Ac­cor­ding to CiA definition, a baud rate of up to 1 Mbit/s can be set.
