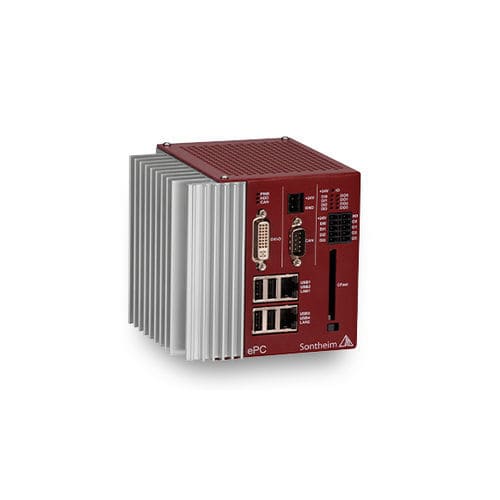

Embedded PC ePC

Intel® AtomDVIUSB

Various processors of the Atom series are avail­able. The chipset is characterized by high energy ef­fic­ien­cy and offers low heat loss. 1 to 2 GB RAM are available onboard and also enable more ex­ten­sive computing operations. The ePC has no rotating parts. Instead of a con­ven­tio­nal hard disk, the fast CFast is used as the suc­ces­sor to Compact Flash – the sys­tem can also be booted via this interface. The ad­van­tage is the speed of up to 3 Gbit/s for data transfer. All CFast cards from 4 to 32 GB are conveniently available from Sontheim. Due to the full metal hous­ing, storage media and CPU, the system offers optimum EMC prop­er­ties and can be passive­ly cooled even under difficult en­vir­on­mental conditions. Link2Go – Put it on! Modern automation applications require ef­fic­ien­cy and the flex­i­bil­ity to be able to react pre­cise­ly to changing requirements. With Link2Go we have created the possibility to connect individual add-on modules to the ePC quickly and conveniently and to ex­change them as required. The spectrum of plan­ned mo­dules ran­ges from touch dis­plays and bus coup­lers to read-only memories and serial interfaces. Customer-specific modules can also be created. Link2Go – create your per­so­nal embedded solution at a standard com­po­nent price. Interfaces For maximum flexibility, the ePC already has nu­mer­ous inter­faces without extensions (Link2Go modules). These include CAN, Ether­net (EtherCAT-capable), digital inputs and outputs, DVI and USB. In the basic con­fi­gur­ation, tasks as PLC, CAN bus master or slave, signal processing center and many other applications are possible.
