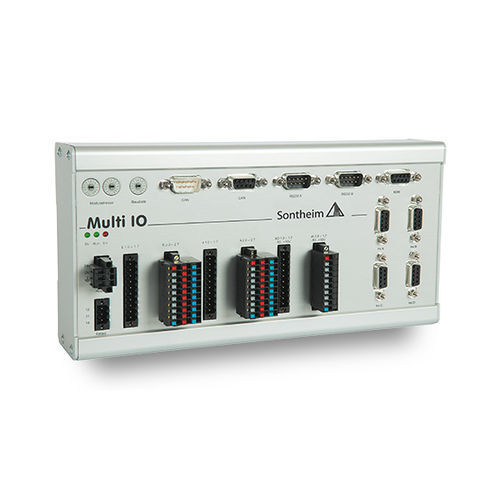

Analog I O module Multi-IO

CANopenCAN16 digital inputs

24 V high performance module for in­put and out­put of dig­ital and an­alog sig­nals with a total of 52 IOs and var­ious features The module has a compact aluminium housing and offers the possibility of top hat rail mounting. The interfaces are quickly and conveniently avail­able on the front panel. Using the 3-wire connection technology, all sensors can be con­nec­ted directly to the module. The danger of incorrect wiring is greatly reduced by the colour coding of the potentials, even for less ex­per­ienc­ed users. Various clamp strips are avail­able, which are optionally equipped with LEDs. All inputs are in­di­cated by an LED on the clamp. In addition, both the baud rate and the module address can be set and read at any time using hex switches. CAN interface The integrated CAN interface in accordance with CANopen (DS 301 and 401) allows flexible use at different points and positions in the production process. It is designed accor­ding to ISO 11898. Signal processing In addition to the inputs, our analog IOs have a powerful microcontroller that handles the acquisition of the sensor technology and the CAN protocol. Furthermore, security mecha­nisms such as guarding are fully inte­grated in the remote IO. Power supply The combined IOs are supplied with 24 V. The integrated reverse polarity protection pre­vents possible destruction of the modules if the supply voltage is incorrectly applied. The control section is additionally protected against short overvoltage peaks by an EMC circuit on the supply voltage.
